MAVERICKSTORM1HYBRID | IP65 COMBO BEAM / SPOT / WASH FIXTURE, OSRAM 420W 7700K SOURCE, CMY COLOR MIXING, LINEAR ZOOM
MAVERICKSTORM1HYBRID
IP65 COMBO BEAM / SPOT / WASH FIXTURE, OSRAM 420W 7700K SOURCE, CMY COLOR MIXING, LINEAR ZOOM
MAVERICKSTORM1HYBRID
IP65 COMBO BEAM / SPOT / WASH FIXTURE, OSRAM 420W 7700K SOURCE, CMY COLOR MIXING, LINEAR ZOOM
- UM : EA
- Estimated Weight: 75.0

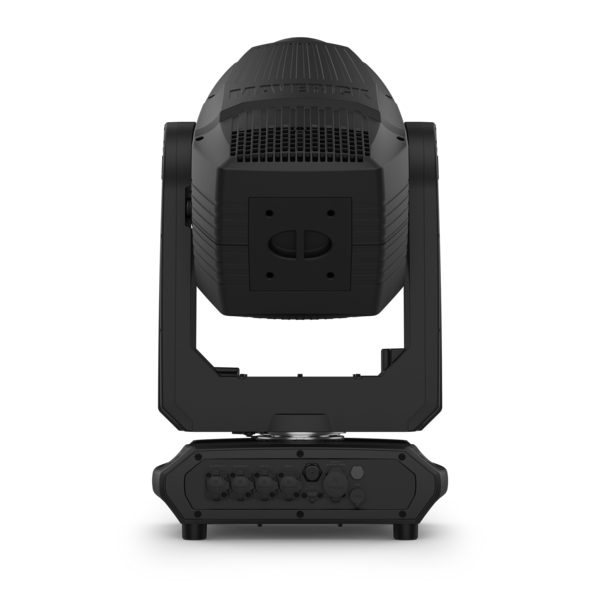

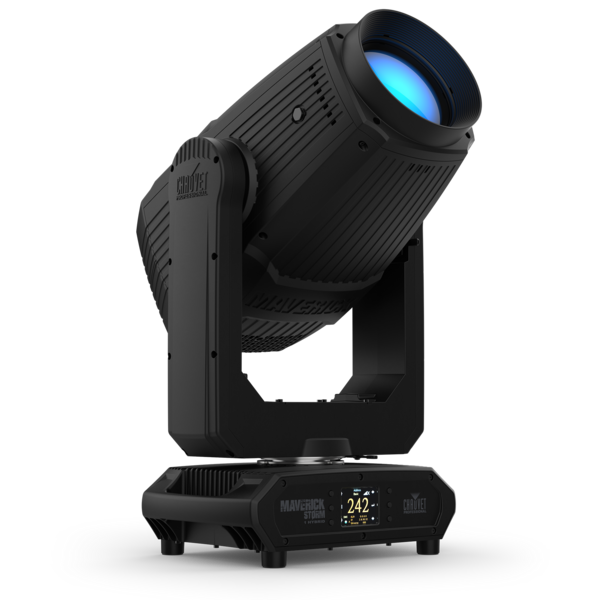

Maverick Storm 1 Hybrid brings the latest Maverick series IP65 technology together with an advanced optical system designed to optimize output from its Osram 420W 7700K source. This combination Beam/Spot/Wash fixture delivers stadium-scale output and CMY color mixing that produces the boldest reds, greens and blues while perfectly matching its fellow Mavericks in the rig. Its linear zoom smoothly delivers precise coverage in both projection modes, from tightly focused beams to crisp even spots, offering a zoom range of 0.9° to 23.7° in Beam mode and 1.1° to 36° in Spot mode. This hybrid houses a full arsenal of features: static and rotating gobo wheels, stackable independent prisms, animation wheel and a heavy frost to shift to a distinctive wash. Maverick Storm 1 Hybrid speaks DMX, ArtNet, sACN, RDM and W-DMX.
Features:
- Powered by a 420W Osram 7700K lamp for intense, stadium-scale output.
- Offers an expansive zoom range for tight beams, crisp spots, and smooth wash effects.
- Equipped with dual gobo wheels and two stackable prisms for dynamic layered projections.
- Achieves a vast color spectrum with a full CMY system and a 14-position color wheel.
- Built with a rugged, IP65-rated housing for dependable performance in all weather conditions.
- Supports DMX, Art-Net, sACN, and W-DMX for seamless integration into professional control systems.
| Light Source | Osram Sirius HRI 420 W lamp, 7700 K (Color Temp), up to 4,500 hours life expectancy |
|---|---|
| Color Temperature (at full) | 6,995 K |
| Front lens diameters | 174mm |
| Lumens | 30,978 |
| Power Connection | Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out |
| Cable Length (power) | 5 ft (1.5 m) |
| Software Connection | Type-C USB |
| Control Protocol | Art-Net, sACN, RDM, DMX, WDMX |
| DMX Channels | 24 or 29 |
| Art-Net/sACN Channels | 24 or 29 |
| Modes/Personalities | 2 personalities (24, 29) |
| Certifications | CE, MET, FCC, CB, UKCA |
| IP Rating | IP65, outdoor/wet, with pressure equalizing M12 GORE valve |
| Temperature (Ambient) | 14 °F to 113 °F (-10 °C to 45 °C) |
