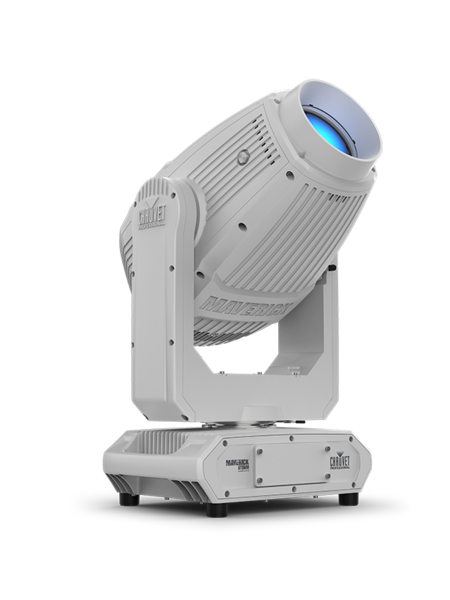

MAVERICKSTORM2PROFILEM | LIGHTWEIGHT YOKE PROFILE FIXTURE, FULL ALUMINUM CONSTRUCTION, IP65, MARINE OUTDOOR USE-WHITE HOUSING
MAVERICKSTORM2PROFILEM
LIGHTWEIGHT YOKE PROFILE FIXTURE, FULL ALUMINUM CONSTRUCTION, IP65, MARINE OUTDOOR USE-WHITE HOUSING
MAVERICKSTORM2PROFILEM
LIGHTWEIGHT YOKE PROFILE FIXTURE, FULL ALUMINUM CONSTRUCTION, IP65, MARINE OUTDOOR USE-WHITE HOUSING
- UM : EA
- Estimated Weight: 81.0
With its full aluminum construction and C5M marine-grade finish, Maverick Storm 2 Profile M adds an extra layer of external corrosion resistance to an already rugged IP66 build. Internal optical components are protected by SunShield technology that comes on whenever the fixture powers down, resulting in a fully-armored fixture that also brings a full armory of features: precise shutter framing, expansive zoom, variable CMY + CTO color mixing, color wheel with CRI and CTB filters, static and rotating gobo wheels, five-facet prism, iris, and frost. A complete creative wheelhouse in a lightweight midsized powerhouse with the enhanced protection to perform extended duty in and near marine environments.
Features:
- Features a powerful 588 W cool white LED engine with a 50,000-hour life expectancy.
- Built with C5M marine-grade paint, aluminum construction, and a protective SunShield.
- Delivers a versatile 5.8° to 56.1° zoom range for flexible beam shaping and coverage.
- Offers variable CMY + CTO mixing and a color wheel with high-CRI and CTB filters.
- Includes dual gobo wheels, a 5-facet prism, iris, and frost for dynamic effect layering.
- Provides precise beam control with a fully rotational four-blade framing shutter system.
| Light Source | 1 LEDs (CW) 588 W, (4.6 A), 7500 K, 50,000 hours life expectancy |
|---|---|
| Color Temperature (at full) | 7,242 K |
| CRI | 71.4 |
| CRI with CRI Filter | 90.3 |
| Front Lens Diameter | 127 mm |
| Beam Angle | 6° to 42° |
| Field Angle | 7.1° to 54.1° |
| Cutoff Angle | 7.7° to 56.5° |
| Zoom Range | 6° to 54.1° |
| Lumens – Source | 43,500 |
| Lumens – Output | 25,840 |
| Selectable PWM | 600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz |

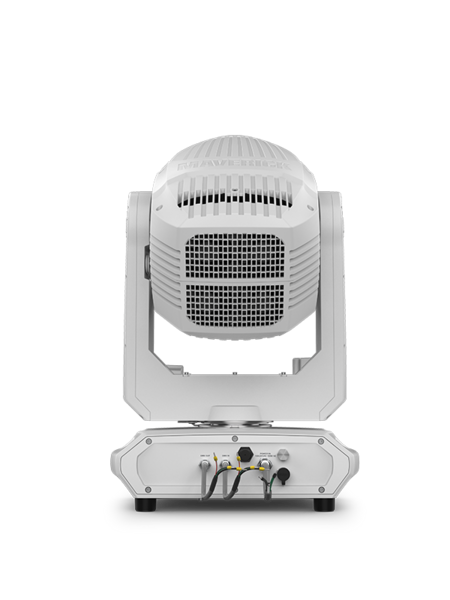

| Power Connection | Termination-ready bare-ended |
| Power Input | proprietary IP65 |
| Data Connection | bare wired to proprietary IP65 input cable |
| Data input/output | Termination-ready bare-ended |
| Control Protocol | Art-Net, DMX, RDM, W-DMX, sACN |
| DMX Channels | 32 or 48 |
| Art-Net Channels | 32 or 48 |
| Modes/Personalities | 2 personalities (32, 48) |
| Certifications | CE, MET, FCC |
| IP Rating | IP66, temporary outdoor/wet use, with pressure equalizing M12 GORE valve |
| Temperature (Ambient) | 4 °F to 113 °F (-20 °C to 45 °C) |
