MAVERICKSTORM3BEAMWASH-2 | IP65 BEAMWASH,28X45W RGBW LEDS,19062 LUMEN OUTPUT,TWO ZONES OF ZOOM CONTROL
MAVERICKSTORM3BEAMWASH-2
IP65 BEAMWASH,28X45W RGBW LEDS,19062 LUMEN OUTPUT,TWO ZONES OF ZOOM CONTROL
MAVERICKSTORM3BEAMWASH-2
IP65 BEAMWASH,28X45W RGBW LEDS,19062 LUMEN OUTPUT,TWO ZONES OF ZOOM CONTROL
- UM : EA
- Estimated Weight: 85.0

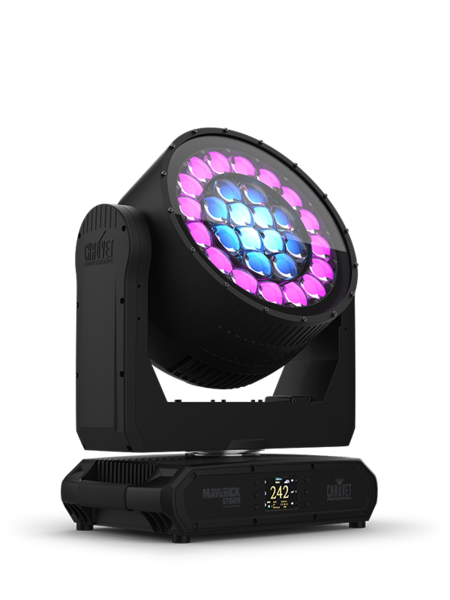

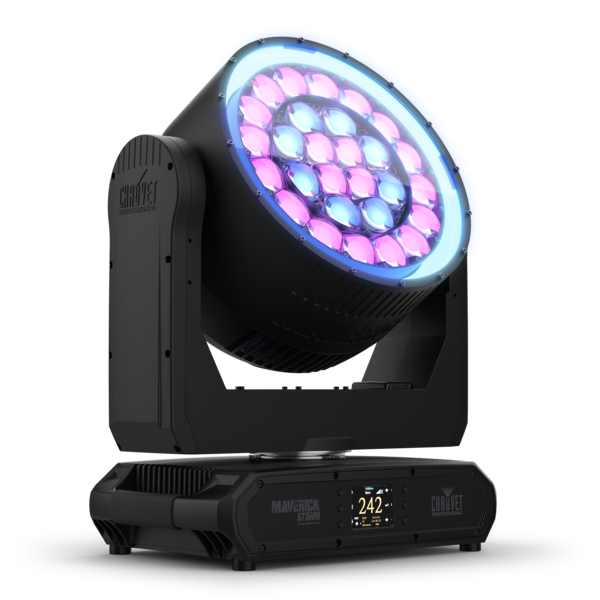

Maverick Storm 3 BeamWash features a 12-zone pixel-mappable RGB LED outer ring for even more stunning eye candy effects when you need them and a stealth filter for when you don’t. Its 16-lens outer zone and 12-lens inner zone deliver massive lumen output from 28x45W RGBW LEDs and provide two zones of independent zoom control to create beam and wash combinations from a single fixture. Built-in macros with foreground and background control easily generate complex pixel eye candy. A unique lens design delivers excellent color blending, tight aerial beam effects and visual impact live or on camera. Dual mode operation enables pixel-mapped eye candy to run under ArtNet/sACN control with separate assignment of motorized functions to DMX. Housed in an advanced IP65-rated alloy body, Maverick Storm 3 BeamWash is built with the durability and versatility to perform in any venue, indoors or out.
Features:
- Features 28 powerful 45W RGBW LEDs, delivering an exceptional output of over 18,500 lumens.
- Delivers a versatile zoom range from a tight 3.9° beam to a broad 53.8° wash.
- Enables complex effects with pixel mapping on all 28 LEDs and a 12-zone outer ring.
- Built with a rugged, IP65-rated alloy housing for reliable all-weather performance.
- Offers dual-mode operation, assigning pixel control to Art-Net/sACN and motors to DMX.
- Ensures flicker-free on-camera operation with user-selectable PWM settings.
| Light Source | 28 LEDs (quad-color RGBW) 45 W (3 A), 50,000 hours life expectancy |
|---|---|
| Light Source | 256 LEDs Outer Ring (tri-color RGB) 0.2 W, (20 mA), 50,000 hours life expectancy. |
| Color Temperature (range) | 2700 to 8000 K |
| Beam Angle | 3.9° to 36.4° |
| Field Angle | 6.7° to 48.7° |
| Cutoff Angle | 7.9° to 53.8° |
| Zoom Range | 3.9° to 53.8° |
| Lumens – Source | 25,800 |
| Lumens – Output | 18,594 |
| Selectable PWM | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz |
| Power Connection | Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out |
| Cable Length (power) | 5 ft (1.5 m) |
| Certifications | CE, MET, FCC, CB, UKCA |
| IP Rating | IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve |
| Temperature (Ambient) | 4 °F to 113 °F (-20 °C to 45 °C) |
