MEB 114-S B | SPEECHLINE TABLE BOUNDARY MICROPHONE, CARDIOID, 3-PIN MINI-XLR-M, 24-48 V PHANTOM POWER,
MEB 114-S B
SPEECHLINE TABLE BOUNDARY MICROPHONE, CARDIOID, 3-PIN MINI-XLR-M, 24-48 V PHANTOM POWER,
MEB 114-S B
SPEECHLINE TABLE BOUNDARY MICROPHONE, CARDIOID, 3-PIN MINI-XLR-M, 24-48 V PHANTOM POWER,
- UM : EA
- Estimated Weight: 1.1

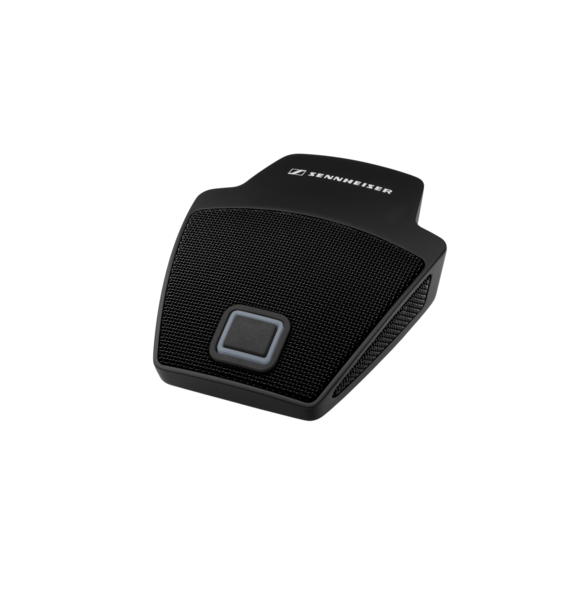

The sturdy on-table boundary layer microphone MEB 114 constitutes an improvement for any conferencing system. In its –S version it additionally features a programmable microphone button (PTT, PTM, toggle ON/off, permanent on), and a bi-color LED ring for status indication. A camera or media control system can be triggered via the TTL logic out on the bottom side. Thanks to its rugged housing and its high-quality microphone capsule the MEB 114 ensures the best speech intelligibility.
Features:
- Microphone modes:Toggle on/off Push to mute, Push to talk permanent on (external LED control)
| Polar pattern | Cardioid |
|---|---|
| Transducer principle | pre-polarized condenser microphone |
| Frequency response | 40 Hz – 20 kHz |
| Audio frequency response | 40 Hz to 20 kHz |
| Dynamic range (>) | 111 dB (A) |
| Equivalent noise level (db) | 29 dB (A) |
| Max. sound pressure level | 140 dB |
| Operating temperature (C) | 14 ° to 122 ° F |
| Phantom powering | P 24 - P 48 |
| Sensitivity | 10 mV/Pa |
| Nominal impedance | 200 O |
| Output voltage | High level output voltage > 2.4 V, low level output voltage < 0.4 V |
| Dimensions | 3.34 x 3.93 x 0.98 in (W x D x H) |
| Height (mm) | 58 |
| Length (mm) | 205 |
| Weight (g) | 10.26 oz |
| Width (mm) | 170 |
| Product height | 58 |
| Product weight (g) | 10.26 oz |
| Product width | 170 |
