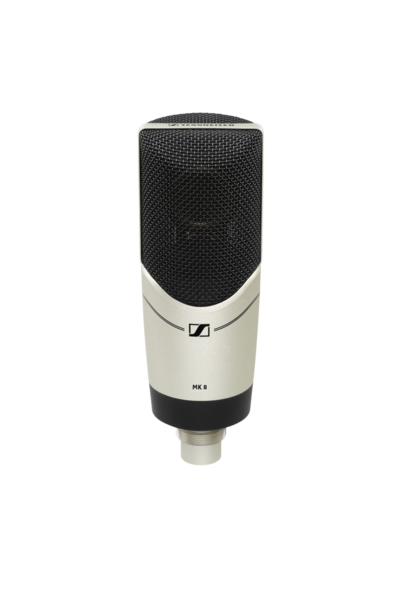

MK 8 | MULTI-PATTERN, LARGE-DIAPHRAGM CONDENSER MICROPHONE WITH 24-CARAT-GOLD-PLATED CAPSULE,
MK 8
MULTI-PATTERN, LARGE-DIAPHRAGM CONDENSER MICROPHONE WITH 24-CARAT-GOLD-PLATED CAPSULE,
MK 8
MULTI-PATTERN, LARGE-DIAPHRAGM CONDENSER MICROPHONE WITH 24-CARAT-GOLD-PLATED CAPSULE,
- UM : EA
- Estimated Weight: 2.0
The MK 8 offers a great solution for advanced home recording applications and project studios alike. It is the microphone for people who pour all of their passion into their audio projects. The MK 8 offers sophisticated options to sign off your sound with your own personal handwriting. The dual-diaphragm condenser microphone delivers warm and precise sound reproduction. Its five independent polar patters allow for a multitude of recording applications and sound design options.
No matter which mixing desk or recording device is used, the MK 8 matches the input sensitivity with a 3-step attenuator. Two adjustable filters compensate for the proximity effect as well as low frequency rumble or structure born noise.
The MK 8 has dual one-inch diaphragms precisely spattered with 24-carat gold. The shock-mounted capsule is accommodated within a sturdy metal housing.
The MK 8. Pride in Sound - Made in Germany.
Features:
- Dual-diaphragm true condenser microphone

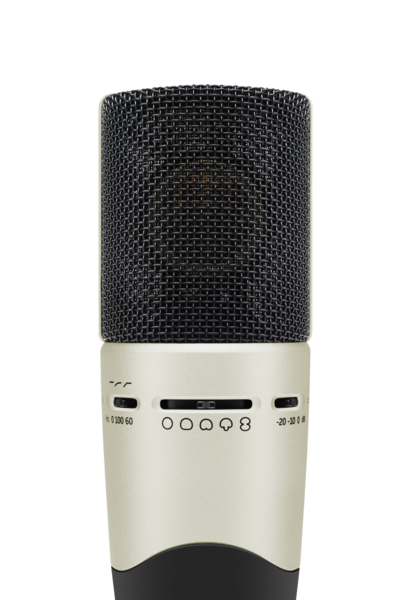

- Five switchable polar patterns
- 3-position switchable low cut/roll-off filter
- 3-position pad switch
- Two 24-carat gold plated 1 inch diaphragms
- Shock-mounted capsule
- Rugged metal housing
- Safely sheltered electronics
- Designed and made in Germany
| Transducer principle | externally polarised condenser microphone, 1‘‘ diaphragm |
|---|---|
| Sensitivity (mV/Pa) | 14,1 mV /-37 dB dBV |
| Frequency response | 20 Hz – 20 kHz |
| Audio frequency response | 20 Hz to 20 kHz |
| Dynamic range (>) | 132 dB |
| Equivalent noise level (db) | 10 dB(A) |
| Low-cut filter | Switchable: Low cut: 60 Hz, -18dB/Octave / Roll off: 100 Hz, -6dB/Octave |
| Pick-up pattern | Switchable: omni-directional, wide cardioid, cardioid, super-cardioid, figure-of-eight |
| Operating temperature (C) | 0°C to +40°C |
| Nominal impedance | 50 Ohms |
| Min. terminating impedance | 1000 Ohms |
| Dimensions | 160 x 57 mm (L x D) |
| Height (mm) | 80 |
| Length (mm) | 260 |
| Weight (g) | 485 g |
| Width (mm) | 120 |
| Product height | 80 |
| Product weight (g) | 485 g |
| Product width | 120 |
