MKH 8070 | HF MICROPHONE SET WITH 48 V PHANTOM POWER. INCLUDES (1) MKH 8070 MICROPHONE BODY (LOBE CONDENSER),
MKH 8070
HF MICROPHONE SET WITH 48 V PHANTOM POWER. INCLUDES (1) MKH 8070 MICROPHONE BODY (LOBE CONDENSER),
MKH 8070
HF MICROPHONE SET WITH 48 V PHANTOM POWER. INCLUDES (1) MKH 8070 MICROPHONE BODY (LOBE CONDENSER),
- UM : EA
- Estimated Weight: 2.0

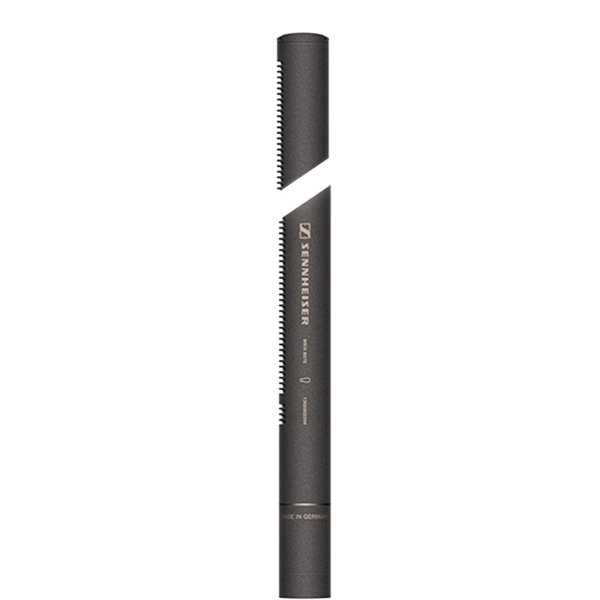

The long shotgun microphone MKH 8070 was especially designed for picking up distant sources of sound in best quality. Its very natural sound makes it the ideal choice for major broadcast and sporting events. Featuring extreme directivity and a pronounced lobar pick-up pattern it will reliably capture that magic moment from a distance, even under the toughest sonic and climatic conditions. The MKH 8070's special design ensures attenuation of off-axis sound without coloration.
Features:
- Lobar pick-up pattern
- Enhanced directivity
- Very natural sound
- Uncolored off-axis sound
- Exceptionally low inherent self-noise
- Extremely low distortion
- Transformerless and fully floating balanced output
- High output signal
- Rugged metal housing
- Non-reflective Nextel coating
- Extremely weather-proof due to RF circuit
- Nextel-
- Becomes a digital mic when combined with the MZD 8000 digital module
- Timbrally identical with the other 8000-series microphones for optimum aural compatibility
| Transducer principle | RF condenser microphone |
|---|---|
| Frequency response | 45 - 20000 Hz |
| Audio frequency response | 45 to 20000 Hz |
| Equivalent noise level (db) | 8 dB |
| Pick-up pattern | lobar |
| Audio output | XLR-3M balanced, transformerless, floating |
| Phantom powering | 48 V +/- 4 V |
| Nominal impedance | 25 Ohm |
| Min. terminating impedance | 2000 Ohm |
| Dimensions | diameter 19 mm, lenght 465 mm (432 mm excluding XLR module) |
| Height (mm) | 82 |
| Length (mm) | 500 |
| Weight (g) | 886 |
| Width (mm) | 170 |
| Product height | 82 |
| Product weight (g) | 886 |
| Product width | 170 |
