MM-2D-E | 2 MIC/LINE INPUT- 2 LINE OUTPUT DANTE CONVERTER EUROBLOCK

Built-in DSP 2 mic/line input / 2 line output Dante converter to respond to various needs of contractor market and professional audio scene.

Features:

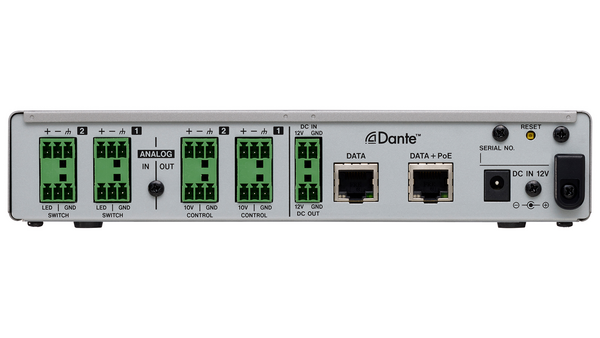

• 2-channel mic/line input with phantom power (+48v) support (Euroblock)
• Supports remote mic gain control
• 2 line output
• 4 Dante input/output
• Supports PoE (Power over Ethernet)
• Up to 24bit/96kHz
• Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 6 in/4 out matrix mixer)
• Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
• Flexible scene preset function allows to work in different area situations (Up to 50 presets)
• 2 types of user control software available for Windows/Mac/iOS/Android devices:For full control: input/output routing selection, DSP/design/scene settings of the complete system, etc.For simple control: simple app design for only the necessary functions such as area volume settings, etc.
• Remote control via GPI and Dante
• Half-rack mountable size

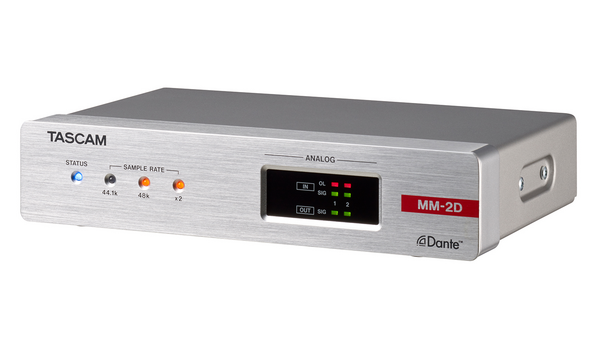

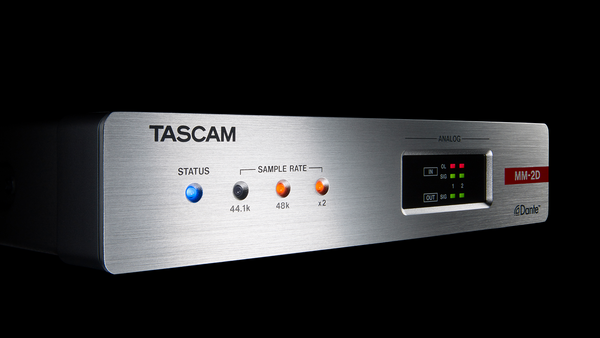

• Equipped with indicators that show LAN/Dante connection status and sample rate
• Equipped with signal indicators that monitor line input/output signals
• Configurable reference level (via remote control only)
• Surface rack mountable angles for installation under desks included
• Optional accessories:AC adapter PS-P1220E for redundant power supply available Rack-mountable shelf AK-RS1 to install and store two Dante Compact Processor models in a 19 inch rack case
