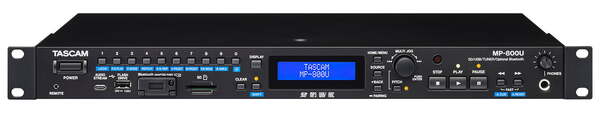

MP-800U | RACKMOUNT SD CARD/USB PLAYER WITH FM TUNER, PITCH CONTROL, USB DAC - BLUETOOTH OPTIONAL**

The MP-800U is a compact, full-featured SD/USB player with a built-in FM tuner, USB DAC, and optional Bluetooth® streaming; offering professional playback versatility with balanced XLR and unbalanced RCA outputs. The MP-800U delivers flexible, high-quality performance for restaurants, hotels, entertainment venues, and all other pro audio setups.

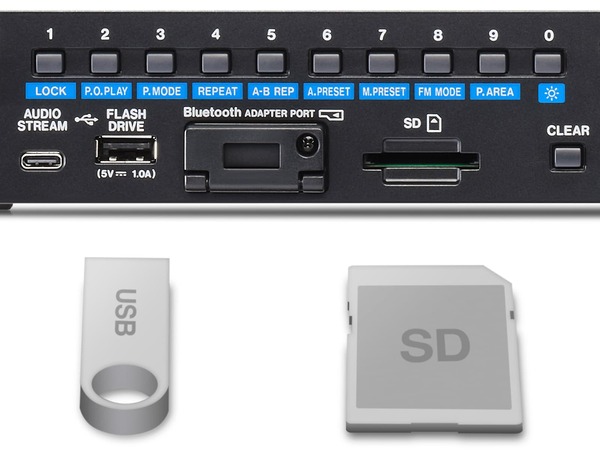

Versatile Playback

The MP-800U offers multi-format playback via its front-panel SD card slot and USB flash drive port. Compatible file types include WAV, MP3, and AAC.

Bluetooth® & USB DAC Made Easy

With the optional AK-BT2 Bluetooth® adapter, the MP-800U handily streams Bluetooth® audio into any installation. Plus, its USB DAC lets you connect any USB equipped device - such as laptops, smartphones, and tablets - via the front panel USB-C port, enabling additional playback options like accessing music libraries on computers.

Tune In With FM

The MP-800U features a built-in FM Tuner, providing easy access to radio broadcasts. Its dedicated tuner output, via unbalanced RCA connectors, allows seamless integration with any audio system. Easily recall up to twenty user preset channels from either the front panel or the remote control.

Flexible Outputs

Equipped with balanced and unbalanced outputs, the MP-800U can integrate quickly and easily into a variety of audio systems. With two output level controls - one for XLR, RCA, and headphone outputs combined, and another for independent tuner attenuation - this media player delivers smooth and precise level adjustments.

Professional Playback Functions

Pro-level playback is at the core of the MP-800U. Power-on-Play automatically starts playback at startup, while fade-in/fade-out ensures smooth track transitions. Auto-Cue, Auto-Ready and Incremental Play keep your playlists primed, Key Original alters speed without changing pitch, while pitch control adjusts both tempo and key.

Q-SYS Control (integration under development)

Currently under development, the plugin will integrate the MP-800U with the Q-SYS Platform using the optional IF-E100 Ethernet card, allowing full playback control directly from the Q-SYS User Control Interface. Access transport functions, source selection, and file navigation through Q-SYS without touching the hardware, thus streamlining operations in many commercial AV environments like conference centers, hospitality spaces, and houses of worship. The official TASCAM plugin will be available through Q-SYS Designer Software.

Key Features

• SD card / USB flash drive player (supports WAV, MP3, AAC)
• USB DAC (Digital Audio Converter)
• FM tuner
• Bluetooth audio supported as an option*
• Balanced XLR and unbalanced RCA outputs
• Auto cue and auto ready functions
• Pitch control function (+/-16%)
• Q-SYS platform compatibility allowing full playback control (Under development) **

Additional Features

• Power-on-play function can automatically start playback when the unit is turned on
• Incremental playback function jumps to the beginning of the next track
• Key original function changes playback speed without changing pitch
• Fade-in / fade-out playback function
• Repeat function including A-B repeat/all/single playback
• Direct track searching using the unit's number keys
• Wireless control using the free iOS/Android TASCAM MEDIA CONTROL CENTER app*
• Use of the optional remote control RC-20 allows direct playback start of up to 20 tracks
• External control via Ethernet (Telnet) supported as an option**
• Fader start / stop and tally output are possible using the CONTROL I / O connectors
• Unbalanced RCA connectors dedicated for tuner output
• Level adjustment function for each output
• Panel lock function can disable use of front panel buttons to increase operation confidence
• Headphone output enables audio monitoring
• 1U rackmount size

* A Bluetooth adapter (AK-BT2) is required.
** An Ethernet control card (IF-E100) is required.
