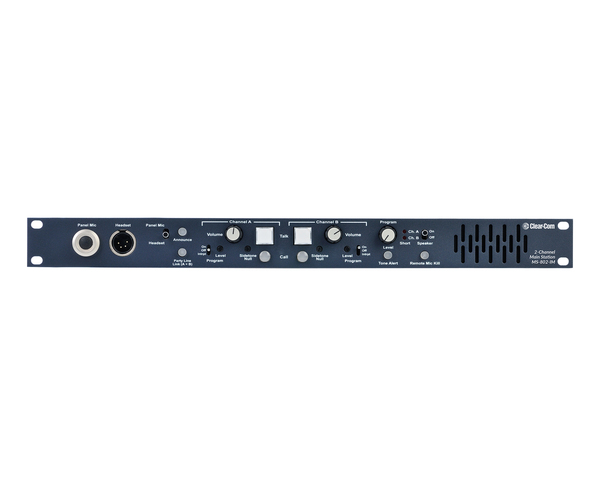

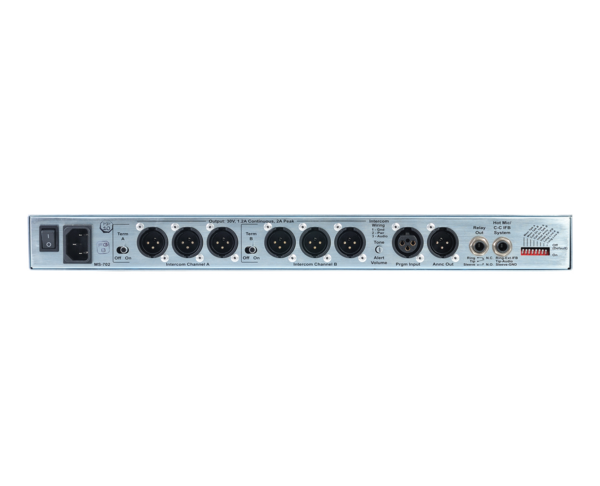

MS-802-IM | ENCORE MARINE CERTIFIED AND DNV-GL REGISTERED TWO-CHANNEL HEADSET/SPEAKER MAIN STATION.

The MS-802-IM is a 1RU two-channel main station featuring programmable front panel buttons, individual channel short-circuit protection, and individual channel volume control. It includes a regulated fail-safe power supply.

The unit supports up to 55 beltpacks or 10 speaker stations. Power requirements for analog partyline systems can be estimated using the Encore Power Supply Calculator.

Features:

• Supports up to 55 beltpacks or 10 speaker stations on two channels
• Ip-20 environmental rating
• Asbestos-free compliant with solas regulation ii-i/3-5.2
• Marine certification compliant with dnvgl-cg-0339 (2016)
• Separate short-circuit protection for each channel
• Program feed to both channels with selectable program interrupt (ifb)
• Remote mic kill
• Announce output with relay
• Visual and audible tone alert signaling
• Built-in speaker
• Universal voltage power supply
