MT-701 | ISOLATOR PCB FOR PL INTERFACE:  ISOLATOR CIRCUIT BOX FOR PARTY-LINE INTERCOM SYSTEMS. ELECTRICALLY

  • MAP: $485.00 / EA
  • List Price: $485.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
ISOLATOR PCB FOR PL INTERFACE:  ISOLATOR CIRCUIT BOX FOR PARTY-LINE INTERCOM SYSTEMS. ELECTRICALLY
ISOLATOR PCB FOR PL INTERFACE:  ISOLATOR CIRCUIT BOX FOR PARTY-LINE INTERCOM SYSTEMS. ELECTRICALLY
ISOLATOR PCB FOR PL INTERFACE:  ISOLATOR CIRCUIT BOX FOR PARTY-LINE INTERCOM SYSTEMS. ELECTRICALLY
Click image to enlarge
ISOLATOR PCB FOR PL INTERFACE:  ISOLATOR CIRCUIT BOX FOR PARTY-LINE INTERCOM SYSTEMS. ELECTRICALLY
ISOLATOR PCB FOR PL INTERFACE:  ISOLATOR CIRCUIT BOX FOR PARTY-LINE INTERCOM SYSTEMS. ELECTRICALLY
ISOLATOR PCB FOR PL INTERFACE:  ISOLATOR CIRCUIT BOX FOR PARTY-LINE INTERCOM SYSTEMS. ELECTRICALLY

MT-701
ISOLATOR PCB FOR PL INTERFACE:  ISOLATOR CIRCUIT BOX FOR PARTY-LINE INTERCOM SYSTEMS. ELECTRICALLY

  • UM : EA

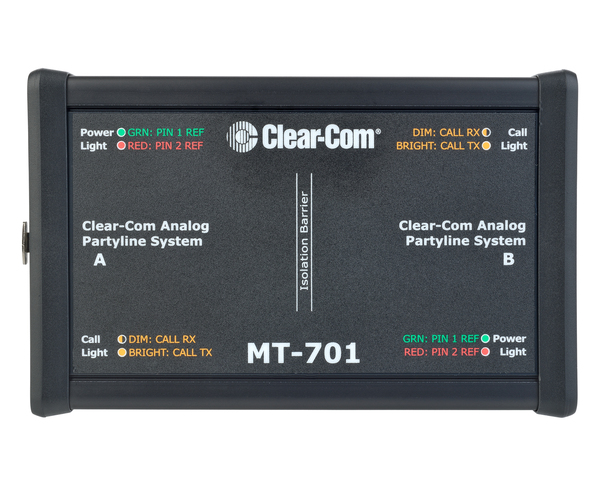

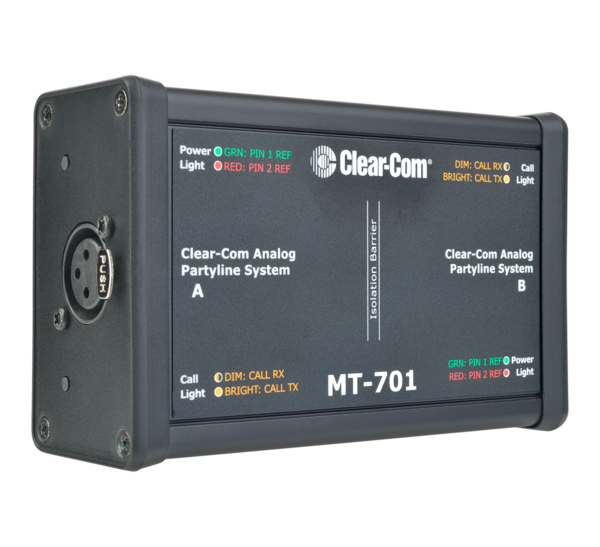

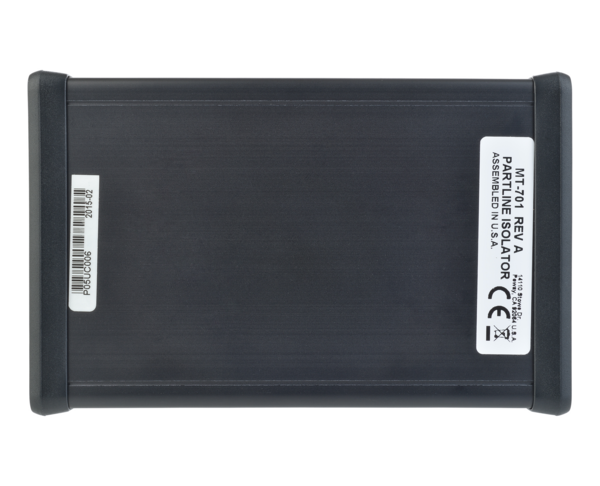

The MT-701 is an isolation box designed to reduce electrical hum in Clear-Com Encore Partyline systems caused by multiple grounding points. It also functions as a bridge between two partyline systems, enabling their integration.

For power planning, refer to the Encore Power Supply Calculator tool to estimate the power requirements of analog partyline systems.

Features:

  • One termination required between connected systems
  • Status information leds
  • Easy installation with standard xlr cables
  • High-quality enclosure for professional use
Pin 2 impedance>5000ω
Max level+2dbu
Distortion<0.2% thd (200hz – 10khz, -10dbu)
Frequency response100khz – 10khz, +2dbu
Nominal input level-18dbu
