MU-3300 | MUSE AUTOMATION CONTROLLER – 8 SERIAL, 8 RELAYS, 8 IR, 8 IO & ICSLAN
MU-3300
MUSE AUTOMATION CONTROLLER – 8 SERIAL, 8 RELAYS, 8 IR, 8 IO & ICSLAN
MU-3300
MUSE AUTOMATION CONTROLLER – 8 SERIAL, 8 RELAYS, 8 IR, 8 IO & ICSLAN
- UM : EA
The AMX MU-3300 MUSE Automation Controller is a powerful, secure, and reliable device that provides a dedicated computing resource running HARMAN Professional''s AMX MUSE automation platform. The MU-3300 can simultaneously process a virtually unlimited number of scripts written in JavaScript, Python, or Groovy and natively supports Low-Code development with Node-RED.
AMX MUSE Automation Controllers feature a modern embedded processor that’s 10x faster than the processor in AMX NX Controllers, bountiful memory, and rugged, industrial grade eMMC storage. Built on HARMAN’s secure Linux platform, MUSE controllers are designed to surpass the requirements of the most secure installations. Additionally, these Controllers natively support HARMAN''s HControl (open-API), HiQnet (legacy HARMAN audio devices) and ICSP (legacy AMX control devices) protocols making them the ideal automation processor for any space, environment, or application - old and new.

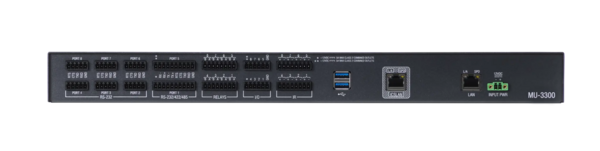

The MU-3300 is a 1 RU device and includes 8 serial ports, 8 relays, 8 IR ports, and 8 I/O ports. An ICSLan network port provides an isolated network for controlled devices.

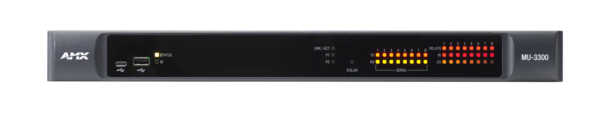

| Ports | Front: (1) USB-C Program Port, (1) USB-A Host Port Rear: (1) 12V DC input, (1) LAN Port, (1) ICSLan Port, (2) RS-232/422/485 (6) RS-232, (8) I/O, (8) IR, (8) Relays, (2) USB-A Host Ports |
|---|---|
| Power Requirements | DC input voltage (typical): 12V DC DC current draw: 3A Max DC range, voltage: 9-18 VDC |
| Environmental | Operating Temperature: 32° F (0° C) to 122° F (50° C) Storage Temperature: 14° F (-10° C) to 140° F (60° C) Operating Humidity: 5% to 85% RH Heat Dissipation (On): 10.2 BTU/hr |
| Regulatory Compliance | ICES 003, CE EN 55032, AUS/NZ CISPR 32, CE EN 55035, CE EN 62368-1, IEC 62368-1, UL 62368-1, VCCI CISPR 32, RoHS / WEEE compliant |
| Dimensions (H x W x D) | 1.766" x 17" x 9.12" (44.85mm x 431.8mm x 231.64mm) |
| Product Weight | 6 lb (2.7kg) |
| SKU Numbers | AMX-CCC033 |
| JITC Status | Approved - 03/2025 |
