MX34C | LIVE MIX 2 CH AV MIXER
MX34C
LIVE MIX 2 CH AV MIXER
MX34C
LIVE MIX 2 CH AV MIXER
- UM : EA
- Estimated Weight: 2.1

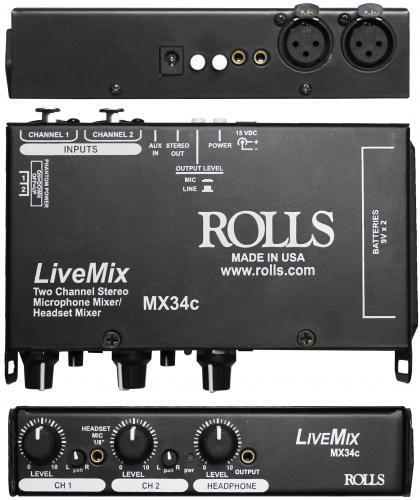

Introducing the MX34c LiveMix - a versatile two-channel microphone mixer designed to meet the needs of video camera operators and live recording enthusiasts alike. With its balanced XLR inputs, phantom power, and stereo 1/8" (3.5mm) outputs, this compact mixer offers exceptional functionality.
Originally crafted with video camera operators in mind, the MX34c ensures professional-grade audio quality for your recordings. Its 3.5mm output can be conveniently switched between mic and line level, providing flexibility for various setups.
Additionally, the MX34c features a stereo 1/8" (3.5mm) Auxiliary input, allowing seamless connection to stereo line-level sources like phones, tablets, or CD players. For narration purposes, a 3.5mm headset mic input is thoughtfully placed on the front.
- Input Impedance: Mic - 600 Ohms or greater (XLR), Aux - 47K stereo (3.5mm)
- Output Impedance: 50 Ohms
- THD + Noise: .02%
- S/N Ratio: 110 dB
- Frequency Response: 20 Hz - 30 kHz (+0 / -1 dB)
- Max Output Level: + 14 dB
- Max Input Level: +20 dB
- Max Gain: +70 dB
- Batteries: 2 X 9V Alkaline
- Current Draw: 30 mA
- Phantom Power: +18 VDC
- Input Connectors: 2 Female XLR, 1/8" (3.5mm)
- Output connectors: 3.5mm Stereo Main Out, 3.5mm Headphone
- DC Power Jack: (5.5mm X 2.1mm Tip Negative)
- Size: 6.3"w x 3.7"d x 1.4"h
- Weight: 1 lbs.
- 9V Battery or AC adapter operation
- 2 Mic Inputs
- +18VDC Phantom Power
- 3.5mm Stereo Output
- 3.5mm Stereo Headphone Output
- Pan control on each channel
- Auxiliary 3.5mm Input
- 3.5mm mic in jack for headset or other mic
