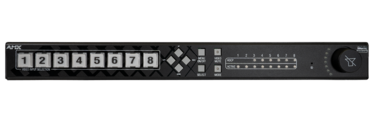

NCITE-813 | NCITE-813, 8X1 4K60 PRS SWTCH

NCITE-813
NCITE-813, 8X1 4K60 PRS SWTCH

AMX Incite Overview

The AMX Incite Series is a powerful, all-in-one digital presentation switcher that combines video switching, scaling, audio DSP, and HARMAN amplification — ideal for high-use professional environments like lecture halls, boardrooms, and government spaces.

Key Features

• 8x1:3 Presentation Switcher
  8 inputs (4 HDMI, 2 DXLink, 2 VGA) and 3 simultaneous scaled outputs (2 HDMI, 1 DXLink)
• 4K/60 4:4:4 & HDCP 2.2 Support
  True 4K quality without reducing frame rate or color depth
• Advanced Video Windowing & Scaling
  Display two video sources at once (side-by-side, PiP, etc.) with live transition effects
• Flexible Compatibility
  Supports new and legacy devices with up/downscaling for seamless input/output handling
• Powerful Audio DSP by BSS
• 10-band parametric EQ
• Independent input gain
• Compression, ducking, limiting, gating
• 2 mic inputs + 6 digital + 6 analog audio inputs
• Assignable audio zones
• Advanced Feedback Suppression™ (dbx AFS)
  Automatically eliminates microphone feedback issues
• Distance Transport via DXLink
  Transmit 4K/60 4:4:4 video up to 70 meters with near-lossless compression
• Built-in Control & Interface Options
• Integrated web GUI
• Front panel controls
• On-screen setup
• Full NetLinx compatibility with feedback and automation

Ideal Use Cases

• Universities and lecture halls
• Corporate boardrooms and conference rooms
• Government and high-profile collaboration spaces
