NEU-NC3FD-L-BAG-1 | RECEPTACLE DL1 SERIES 3 PIN FEMALE - SOLDER CUPS- BLACK/SILVER
NEU-NC3FD-L-BAG-1
RECEPTACLE DL1 SERIES 3 PIN FEMALE - SOLDER CUPS- BLACK/SILVER
NEU-NC3FD-L-BAG-1
RECEPTACLE DL1 SERIES 3 PIN FEMALE - SOLDER CUPS- BLACK/SILVER
- UM : EA
- Estimated Weight: 1.0

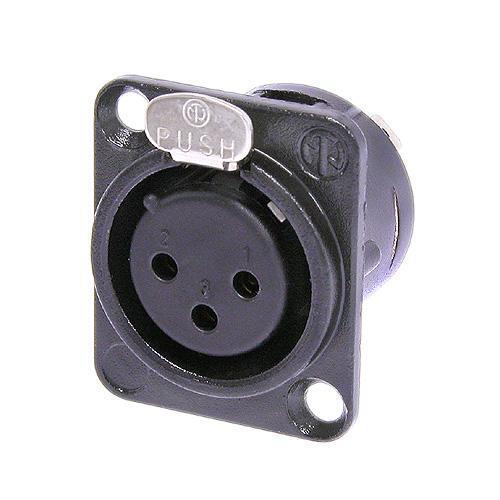

3 pole female receptacle, solder cups, black metal housing, silver contacts
Universal D-size metal body XLR panel mount series. UL recognized component.
Features
Robust "D" metal shell
Standardized D sized 24 mm panel cutout
Solder cups on 3 - 7 pole version
Product | |
Title | NC3FD-L-BAG-1 |
Connection Type | XLR |
Gender | female |
Electrical | |
Capacitance between contacts | = 4 pF |
Contact resistance | = 5 mO |
Dielectric strength | 1,5 kVdc |
Insulation resistance | > 10 GO (initial) |
Rated current per contact | 16 A |
Rated voltage | < 50 V |
Mechanical | |
Insertion force | = 20 N |
Withdrawal force | = 20 N |
Lifetime | > 1000 mating cycles |
Wiresize | max. 2.5 mm² |
Wiresize | max. 14 AWG |
Wiring | Solder contacts |
Locking device | Latch lock |
Chassis shape | D |
Material | |
Contact plating | 2 µm Ag over 2 µm Ni |
Contacts | Bronze (CuSn8) |
Insert | Polyamide (PA 6.6 30 % GR) |
Locking element | Steel Ck67 |
Shell | Zinc diecast (ZnAl4Cu1) |
Shell plating | Black chromium |
Environmental | |
Approvals | UL |
Flammability | UL 94 HB |
Standard compliance | IEC 61076-2-103 |
Protection class | IP 40 |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 °C to +80 °C |
