NEU-NC4MXX | CABLE END MALE 4 PIN XLR CONNECTOR / ZINC SHELL & BLACK BOOT
NEU-NC4MXX

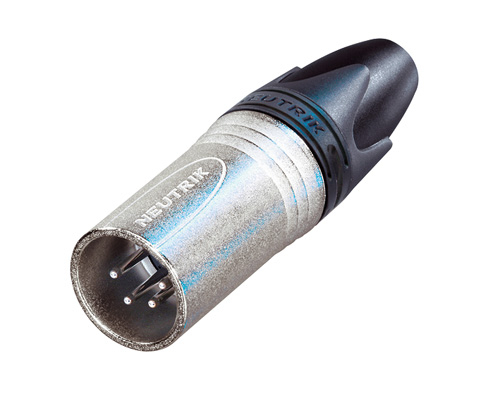

CABLE END MALE 4 PIN XLR CONNECTOR / ZINC SHELL & BLACK BOOT
NEU-NC4MXX
CABLE END MALE 4 PIN XLR CONNECTOR / ZINC SHELL & BLACK BOOT
- UM : EA
- Estimated Weight: 1.0
4 pole male cable connector with Nickel housing and silver contacts.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features
Male connector with improved locking recess without "window", more stringent housing increases durability
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Boot with polyurethane gland gives high protection to cable bending stresses
Colored rings and boots available for coding or identification
Sleek and ergonomic design - valuable and handy
Rugged zinc diecast shell, long lasting and dependable
Internal thread on shell is well protected against any damage
|
Product |
|
|
Title |
NC4MXX |
|
Connection Type |
XLR |
|
Gender |
male |
|
Electrical |
|
|
Capacitance between contacts |
= 7 pF |
|
Contact resistance |
= 3 mO |
|
Dielectric strength |
1,5 kVdc |
|
Insulation resistance |
> 10 GO (initial) |
|
Rated current per contact |
10 A |
|
Rated voltage |
< 50 V |
|
Mechanical |
|
|
Cable O.D. |
3.5 - 8.0 mm |
|
Insertion force |
= 20 N |
|
Withdrawal force |
= 20 N |
|
Lifetime |
> 1000 mating cycles |
|
Wiresize |
max. 1.5 mm² |
|
Wiresize |
max. 16 AWG |
|
Wiring |
Solder contacts |
|
Locking device |
Latch lock |
|
Material |
|
|
Boot |
Polyurethan |
|
Contact plating |
2 µm Ag over 2 µm Ni |
|
Contacts |
Brass (CuZn39Pb3) |
|
Insert |
Polyamide (PA66) |
|
Locking element |
Zinc diecast (ZnAl4Cu1) |
|
Shell |
Zinc diecast (ZnAl4Cu1) |
|
Shell plating |
Nickel |
|
Strain relief |
Polyacetal (POM) |
|
Environmental |
|
|
Flammability |
UL 94 V-0 |
|
Standard compliance |
IEC 61076-2-103 |
|
Protection class |
IP 40 |
|
Solderability |
Complies with IEC 68-2-20 |
|
Temperature range |
-30 °C to +80 °C |
