NEU-NE8MX-B | CABLE CARRIER X SERIES ETHERCON CAT5 - BLACK - REQUIRES RJ45 CABLE
NEU-NE8MX-B
CABLE CARRIER X SERIES ETHERCON CAT5 - BLACK - REQUIRES RJ45 CABLE
NEU-NE8MX-B
CABLE CARRIER X SERIES ETHERCON CAT5 - BLACK - REQUIRES RJ45 CABLE
- UM : EA
- Estimated Weight: 1.0

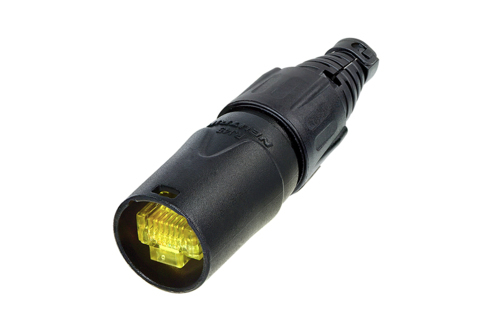

RJ45 cable connector carrier for pre-assembled RJ45 plugs consists of black chromium shell, bushing and boot. Packed with two cable protection elements for cable diameter up to 8 mm. Cable connector carrier does not include a RJ45 plug.
The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.
ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
Features
The RJ45 system for harsh and demanding environment
Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
Rugged diecast shell and unique chuck type strain relief
Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
Allows assembly of pre-assembled conventional RJ45 cables
Accessories include color coded boots in 9 standard colors
|
Product |
|
|
Title |
NE8MX-B |
|
Gender |
male |
|
IMPORTANT |
Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user! |
|
Mechanical |
|
|
Cable O.D. |
4.5 mm - 8 mm |
|
Insertion force |
= 20 N |
|
Withdrawal force |
= 20 N |
|
Lifetime |
> 1000 mating cycles |
|
Material |
|
|
Boot |
Polyamide (PA 6) |
|
Shell |
Zinc diecast (ZnAl4Cu1) |
|
Shell plating |
Black chromium |
|
Strain relief |
Polyacetal (POM) |
|
Environmental |
|
|
Temperature range |
-30 °C to +80 °C |
