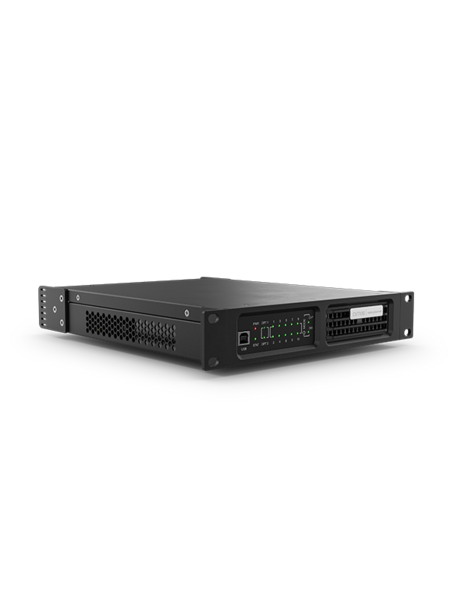

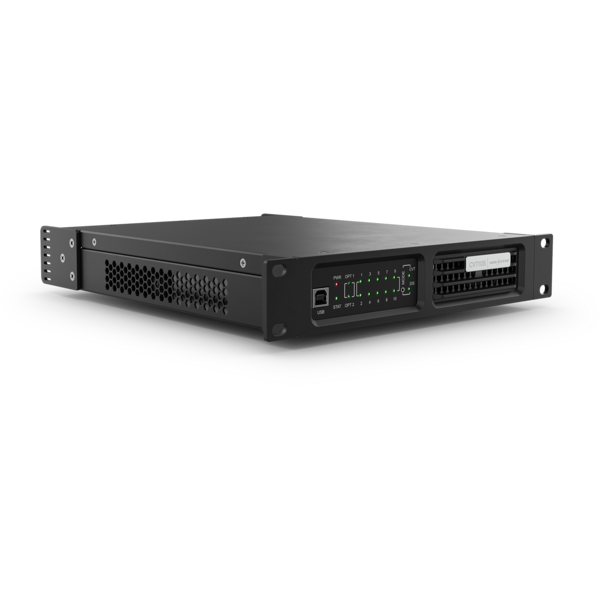

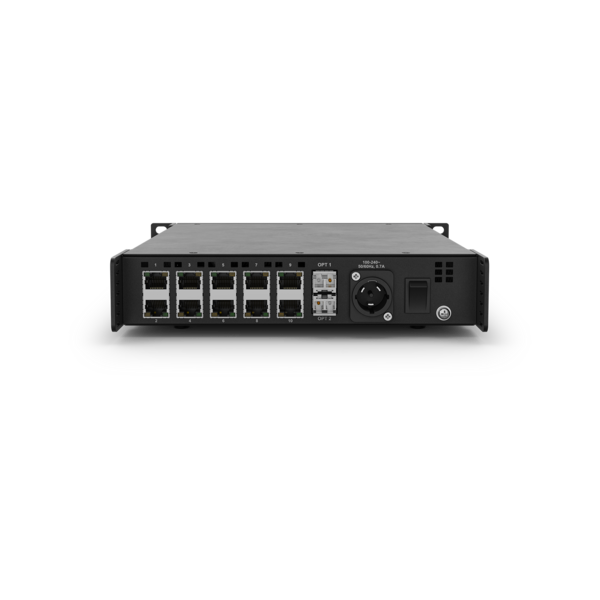

NOVASTARCVT10S | NOVASTAR CVT-10S INDOOR FIBER CONVERTER (10-PORT)
NOVASTARCVT10S
NOVASTAR CVT-10S INDOOR FIBER CONVERTER (10-PORT)
Click image to enlarge
NOVASTARCVT10S
NOVASTAR CVT-10S INDOOR FIBER CONVERTER (10-PORT)
- UM : EA
- Estimated Weight: 7.0
NovaStar Fiber Converter CVT-10-S EO Converter offers a single-mode optical/electrical signal conversion solution for indoor use. Full-duplex low-interference data transmission makes this converter suitable for bridging long-distance signal runs. Its 19″ 1U design is both rack and desk mountable. Features include 10G optical modules, 1G Ethernet ports and a USB-B control port. Works with all NovaStar processors and supports 10x Gigabit Ethernet ports when used with the NovaStar MX40 Pro LED display controller.
Features:
- Converts single-mode fiber optic signals to ten full-duplex Gigabit Ethernet outputs.
- Features redundant fiber inputs to ensure stable, uninterrupted signal connections over long distances.
- Provides an extra layer of signal reliability with redundant Ethernet output working modes.
- Housed in a standard 19-inch 1U chassis for simple rack or desk mounting.
- Offers seamless integration with all NovaStar processors via a dedicated USB-B control port.
- Equipped with an auto-ranging 100-240 VAC power supply for global compatibility.
| Power Connection | Locking IEC to bare-ended (sold separately) |
|---|---|
| Fiber Port(s) Type | 10 G, 1,310 nm Single Mode, 10 km Transmission Distance |
| Signal Connector (Fiber) | Dual LC |
| Signal Connector (Ethernet) | RJ-45 |
| Firmware Update Port | USB type-B |
| Fiber Module Config | Primary (preinstalled), Backup (reserved) |
| Display | LED Power/Signal Indicators |
| Listings | RoHS, FCC, CE, IC, RCM |
| IP Rating | IP20 (indoor) |
| Thermal Dissipation | 512 BTU/hour |
| Operating Temperature | -4 °F to 131 °F (-20 °C to 55 °C) |
×
×
