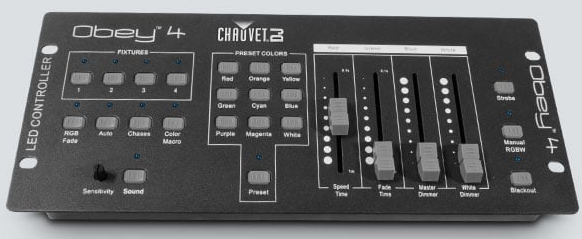

OBEY4 | DMX CONTROLLER FOR LED WASH LIGHTS W/3 OR 4-CHANNEL MODES—RED, GREEN, BLUE & WHITE/AMBER

  • MAP: $99.99 / EA
  • List Price: $133.32 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 6
  • Usually ships in 3-7 days
DMX CONTROLLER FOR LED WASH LIGHTS W/3 OR 4-CHANNEL MODES—RED, GREEN, BLUE & WHITE/AMBER
Click image to enlarge

OBEY4
DMX CONTROLLER FOR LED WASH LIGHTS W/3 OR 4-CHANNEL MODES—RED, GREEN, BLUE & WHITE/AMBER

  • UM : EA
  • Estimated Weight: 24.9

It’s a compact DMX controller for LED wash lights with 3- or 4-channel modes—red, green, blue and white/amber—for easy color-mixing control. It has built-in automated, sound-activated or manual playback options and can control fixtures in four different zones—independently of each other. Its one-touch buttons of pre-mixed colors, built-in chases and strobe and dimmer controls make it perfect for a lighting novice or anyone looking for an easy way to control LED washes.

Features

  • Compact DMX controller designed for LED fixtures with up to 4 channels

    • Channel 1: red

    • Channel 2: green

    • Channel 3: blue

    • Channel 4: white (or amber)

  • Easily controls up to 4 separate fixtures

  • Increase effects by simultaneously operating each fixture in different playback modes with variable fade times

  • Increase flexibility with playback options that include manual RGBA/RGBW, automated and sound-activated mode

  • Playback modes:

    • Preset: 9 built-in colors

    • Chases: manually trigger automated programs

    • Color macro: manually scroll through the color spectrum

    • RGB fade: automatically scroll through the color spectrum

    • RGB fade delay: automatically scroll through the color spectrum with a small delay to each fixture

    • Auto: randomly selects different colors for each fixture

  • Increase control with adjustable audio sensitivity as well as strobe and blackout effects

DMX Channels

16

DMX Connectors

3-pin XLR

Strobe Rate

0 to 33 Hz

Input voltage

9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)

Weight

3 lb (1.4 kg)

Size

12.8 x 5.5 x 2.1 in (325 x 140 x 52 mm)

Approvals

CE





More Info
