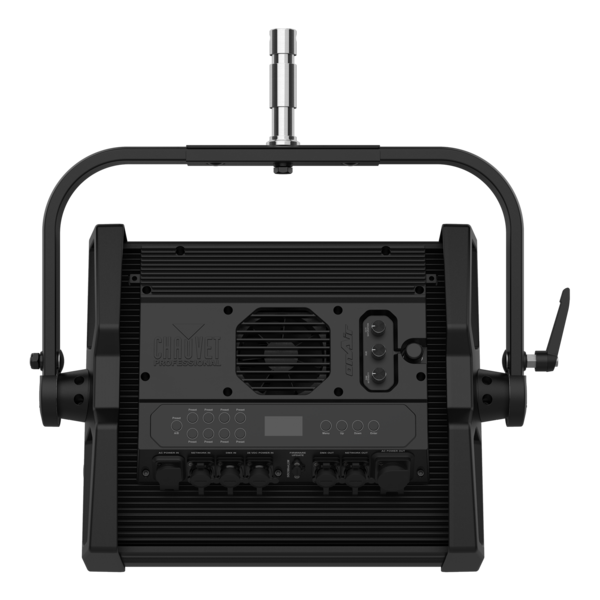

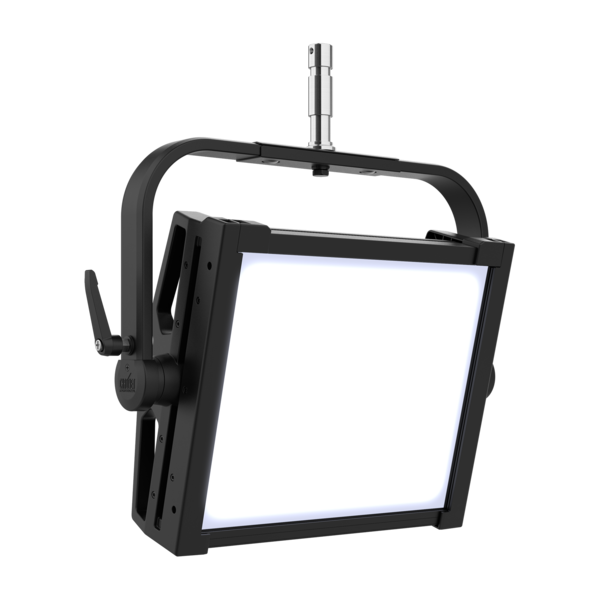

ONAIRPANEL1IP | IP65, FULL-SPECTRUM LED SOFT LIGHT WITH A 1×1 FORMAT, CONTROL BOX, DMX, ETHERCON ART-NET/SACN
ONAIRPANEL1IP
IP65, FULL-SPECTRUM LED SOFT LIGHT WITH A 1×1 FORMAT, CONTROL BOX, DMX, ETHERCON ART-NET/SACN
ONAIRPANEL1IP
IP65, FULL-SPECTRUM LED SOFT LIGHT WITH A 1×1 FORMAT, CONTROL BOX, DMX, ETHERCON ART-NET/SACN
- UM : EA
- Estimated Weight: 30.0
onAir Panel 1 IP is a rugged IP65, full-spectrum LED soft light with a 1×1 format that is capable of facing all of the elements, outdoors or in. Ready to go on-location for any broadcast setting, onAir IP Panel 1 features a superior quality of white light with high CRI/ TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard control menu. Easily switch mounting options from Jr Pin to Omega Bracket on a rugged build, designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs.
Features:
- Offers a wide 2800 K to 8000 K CCT range with +/- green adjustment for precise color control.
- Supports DMX, RDM, CRMX, Art-Net, and sACN for versatile system integration.
- Provides completely silent operation ideal for studio use with a fanless cooling system.
- Adds on-location flexibility with a 28 VDC input for external battery pack power.
- Ensures flicker-free on-camera performance with adjustable Pulse Width Modulation.
- Features versatile mounting options, easily switching between a Jr Pin and Omega Bracket.
| Light Source | 224 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy. |
|---|---|
| Light Source | 224 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy. |
| Color Temperature (range) | 2800 to 8000 K |
| Color Temperature (at full) | 7566 K |
| CRI | 95 |
| Beam Angle | 99.3° |
| Field Angle | 154° |
| Lumens | 10,092 |
| Illuminance | 165 lux @ 5 m |
| Selectable PWM | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz |
| Control Protocol | Art-Net, sACN, DMX, CRMX, RDM |
| DMX Channels | 1, 3, 4, 5, 6, 8, 10, 11, 15, 16 |
| Art-Net Channels | 1, 3, 4, 5, 6, 8, 10, 11, 15, 16 |
| Modes/Personalities | 12 personalities (1, 3, 4, 5, 6, 8Ch1, 8Ch2, 10, 11, 15Ch1, 15Ch2, 16) |
| Certifications | CE, MET, FCC, |
| IP Rating | IP65, temporary outdoor use, with pressure equalizing M12 GORE valve |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
