ONAIRPANEL3IP | IP65 FULL-SPECTRUM LOW-PROFILE 1X3 FORMAT LED SOFT LIGHT
ONAIRPANEL3IP
IP65 FULL-SPECTRUM LOW-PROFILE 1X3 FORMAT LED SOFT LIGHT
ONAIRPANEL3IP
IP65 FULL-SPECTRUM LOW-PROFILE 1X3 FORMAT LED SOFT LIGHT
- UM : EA
- Estimated Weight: 29.0

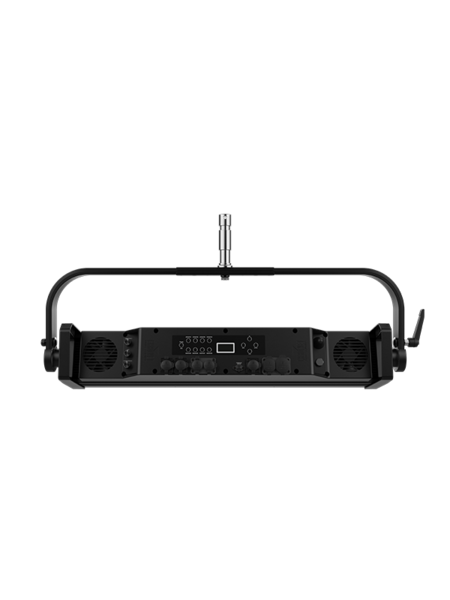

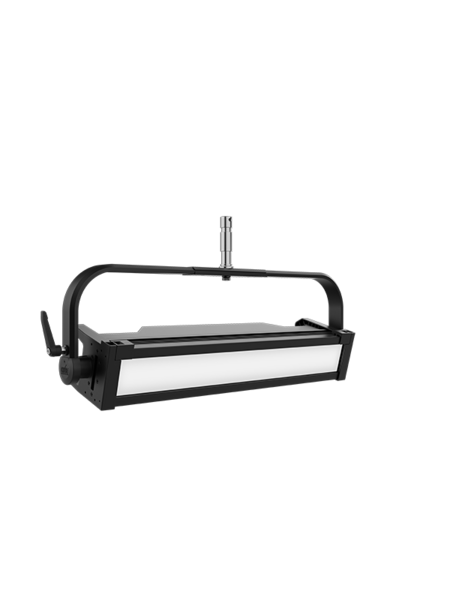

onAir Panel 3 IP is a rugged IP65 full-spectrum low-profile 1×3 format LED soft light capable of facing all of the elements, indoors or out. Ready to go on location for any broadcast setting, onAir IP Panel 3 features a superior quality of white light with high CRI/TLC and TM-30 scores, a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, the ability to produce a pop of color to achieve the exact look you are aiming to create, along with built-in customizable effects accessible from the onboard control menu. Easily switch mounting options from Jr Pin to Omega Bracket. Drop-in slot for diffusers and intensifier filters ensures ease of use when changing accessories. Adjustable PWM ensures camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs. DMX, RDM, CRMX, Art-Net, sACN, and onboard control options make for flexible operation.
Features:
- Provides a linear CCT range of 2800 K to 8000 K with high CRI values.
- Offers precise color control with +/- green adjustment and an emulated red-shift.
- Built with a rugged IP65-rated housing for reliable performance in any weather condition.
- Supports DMX, RDM, CRMX, Art-Net, and sACN for flexible control integration.
- Features a 28 VDC input for flexible power from external battery packs on location.
- Delivers flicker-free on-camera performance with adjustable PWM and near-silent operation.
| Light Source | 120 LEDs (tri-color RGB) 1.5 W, (282 mA), 50,000 hours life expectancy. |
|---|---|
| Light Source | 120 LEDs (WW) 0.5 W, (113 mA), 50,000 hours life expectancy. |
| Color Temperature (range) | 2800 to 8000 K |
| Color Temperature (at full) | 5527K |
| CRI (3200 K) | 91.2 |
| Lumens (No Optics) | 8080 |
| Lumens (Light Filter) | 6896 |
| Lumens (Medium Filter) | 6317 |
| Lumens (Heavy Filter) | 5964 |
| Lumens (Intensifier Filter) | 5498 |
| Selectable PWM | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz |
| Control Protocol | Art-Net, sACN, DMX, WDMX, CRMX, RDM |
| DMX Channels | 1, 3, 4, 5, 6, 8, 11, 12, 15, 19, 24, XY Basic, XY Extended |
| Art-Net Channels | 1, 3, 4, 5, 6, 8, 11, 12, 15, 19, 24, XY Basic, XY Extended |
| Modes/Personalities | 14 personalities (1, 3, 4, 5, 6, 8, 11, 12, 15, 19, 24, XY Basic, XY Extended) |
| Power Connection | Edison (Local) plug to Seetronic Powercon IP65 |
| Power Input | Seetronic Powercon IP65 |
| Power Output | Seetronic Powercon IP65 |
| Power Input | 28 VDC, 3-pin IP65 XLR |
| Data Connectors | 5-pin IP65 XLR, Seetronic etherCON® Compatible |
| Cable Length (power) | 5 ft (1.5 m) |
| Software Connection | Type-C USB |
| Certifications | CE, MET, FCC, UKCA |
| IP Rating | IP65, temporary outdoor use, with pressure equalizing M12 GORE valve |
| Temperature (Ambient) | -13 °F to 113 °F (-20 °C to 45 °C) |
