ONAIRPANEL3LIGHTFILTER | FULL-SPECTRUM LED LINEAR FORMAT SOFT LIGHT PANEL FIXTURE,IP65 RATING,REMOTE DEVICE MANAGEMENT
ONAIRPANEL3LIGHTFILTER
FULL-SPECTRUM LED LINEAR FORMAT SOFT LIGHT PANEL FIXTURE,IP65 RATING,REMOTE DEVICE MANAGEMENT
ONAIRPANEL3LIGHTFILTER
FULL-SPECTRUM LED LINEAR FORMAT SOFT LIGHT PANEL FIXTURE,IP65 RATING,REMOTE DEVICE MANAGEMENT
- UM : EA
- Estimated Weight: 0.7

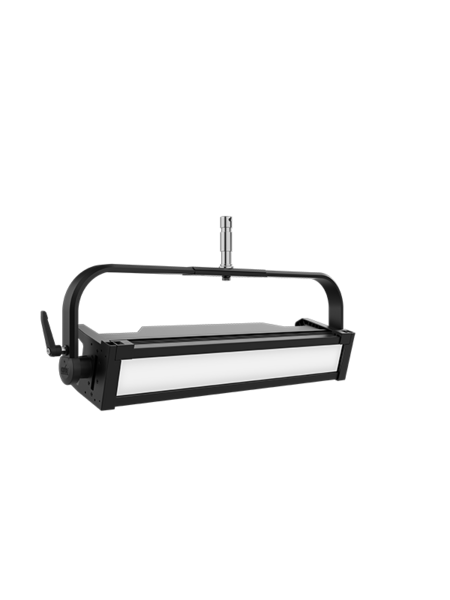

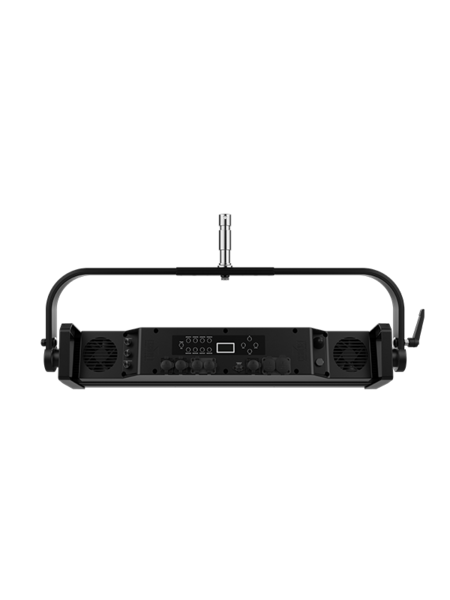

onAir Panel 3 IP is a rugged IP65 full-spectrum low-profile 1×3 format LED soft light capable of facing all of the elements, indoors or out. Ready to go on location for any broadcast setting, onAir IP Panel 3 features a superior quality of white light with high CRI/TLC and TM-30 scores, a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, the ability to produce a pop of color to achieve the exact look you are aiming to create, along with built-in customizable effects accessible from the onboard control menu. Easily switch mounting options from Jr Pin to Omega Bracket. Drop-in slot for diffusers and intensifier filters ensures ease of use when changing accessories. Adjustable PWM ensures camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs. DMX, RDM, CRMX, Art-Net, sACN, and onboard control options make for flexible operation.
Features:
- Full-spectrum LED linear format soft light panel style fixture for broadcast, film, and special events
- IP65 rating for all weather use indoors or out.
- Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS
- Virtual color wheel with color matched to popular gel colors
- +/- Green adjustment and emulated red-shift via DMX or on-board control
- RDM (Remote Device Management) and CRMX Wireless Control for added flexibility
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- Virtually silent operation for use in studio applications
- Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.
- Easily switch mounting options from jr pin to omega bracket
- Drop-in slot for diffusers and intensifier filter (sold separately)
- Rugged design for years of rough use in the most extreme conditions.
- Easy to use on-board control with full access to all the features of the fixture without the need for a dedicated controller.
- USB port for fixture software updates
- 28 VDC power input via 3-pin XLR to power the fixture from an external battery pack
| Light Source | 120 LEDs (tri-color RGB) 1.5 W, (282 mA), 50,000 hours life expectancy. |
|---|---|
| Light Source | 120 LEDs (WW) 0.5 W, (113 mA), 50,000 hours life expectancy. |
| Color Temperature (range) | 2800 to 8000 K |
| Color Temperature (at full) | 5527K |
| CRI (3200 K) | 91.2 |
| Beam Angle (No Optics) | 111.3° |
| Beam Angle (Light Filter) | 96.7° |
| Beam Angle (Medium Filter) | 97.8° |
| Beam Angle (Heavy Filter) | 108.2° |
| Beam Angle (Intensifier Filter) | 74.4° |
| Field Angle (No Optics) | 153.9° |
| Field Angle (Light Filter) | 149° |
| Field Angle (Medium Filter) | 158.4° |
| Field Angle (Heavy Filter) | 162° |
| Field Angle (Intensifier Filter) | 135.2° |
| Lumens (No Optics) | 8080 |
| Lumens (Light Filter) | 6896 |
| Lumens (Medium Filter) | 6317 |
| Lumens (Heavy Filter) | 5964 |
| Lumens (Intensifier Filter) | 5498 |
| Illuminance (No Optics) | 143 lux @ 5 m |
| Illuminance (Light Filter) | 134 lux @ 5 m |
| Illuminance (Medium Filter) | 110 lux @ 5 m |
| Illuminance (Heavy Filter) | 91 lux @ 5 m |
| Illuminance (Intensifier Filter) | 141 lux @ 5 m |
| Selectable PWM | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Strobe Rate | 0 to 20 Hz |
| Standalone Color Mixing | Yes |
| Color Temperature Presets | Yes |
| Dim Modes | 4 |
| Dim Curves | 4 |
| Built-in Automated Programs | Yes |
| Dimensions | 11.2 x 33.75 x 4.75 in (284.48 x 857.25 x 120.65 mm) |
| Weight | 26 lb (12 kg) |
| Exterior Color | Black |
| Housing Material | Die-Cast Magnesium |
| Power Connection | Edison (Local) plug to Seetronic Powercon IP65 |
| Power Input | Seetronic Powercon IP65 |
| Power Output | Seetronic Powercon IP65 |
| Power Input | 28 VDC, 3-pin IP65 XLR |
| Data Connectors | 5-pin IP65 XLR, Seetronic etherCON Compatible |
| Cable Length (power) | 5 ft (1.5 m) |
| Software Connection | Type-C USB |
| Control Protocol | Art-Net, sACN, DMX, WDMX, CRMX, RDM |
| DMX Channels | 1, 3, 4, 5, 6, 8, 11, 12, 15, 19, 24, XY Basic, XY Extended |
| Art-Net Channels | 1, 3, 4, 5, 6, 8, 11, 12, 15, 19, 24, XY Basic, XY Extended |
| Modes/Personalities | 14 personalities (1, 3, 4, 5, 6, 8, 11, 12, 15, 19, 24, XY Basic, XY Extended) |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Linking | 8 units @ 120 V; 14 units @ 208 V; 16 units @ 230 V |
| Power and Current | 167 W, 1.392 A @ 120 V, 60 Hz |
| Power and Current | 160 W, 0.823 A @ 208 V, 60 Hz |
| Power and Current | 157 W, 0.747 A @ 230 V, 50 Hz |
| IP Rating | IP65, temporary outdoor use, with pressure equalizing M12 GORE valve |
| Temperature (Ambient) | -13 °F to 113 °F (-20 °C to 45 °C) |
| Professional Clamps | CTC-50HC, CTC-50HCN |
