ONAIRPANELMINIP | SMALL IP65 FULL SPECTRUM LED SOFT LIGHT

  • MAP: $1,209.00 / EA
  • List Price: $1,388.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
SMALL IP65 FULL SPECTRUM LED SOFT LIGHT
SMALL IP65 FULL SPECTRUM LED SOFT LIGHT
Click image to enlarge
SMALL IP65 FULL SPECTRUM LED SOFT LIGHT
SMALL IP65 FULL SPECTRUM LED SOFT LIGHT

ONAIRPANELMINIP
SMALL IP65 FULL SPECTRUM LED SOFT LIGHT

  • UM : EA
  • Estimated Weight: 9.0

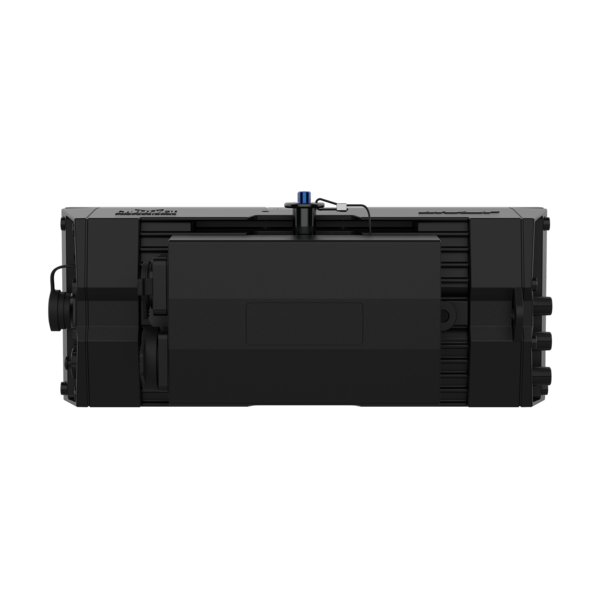

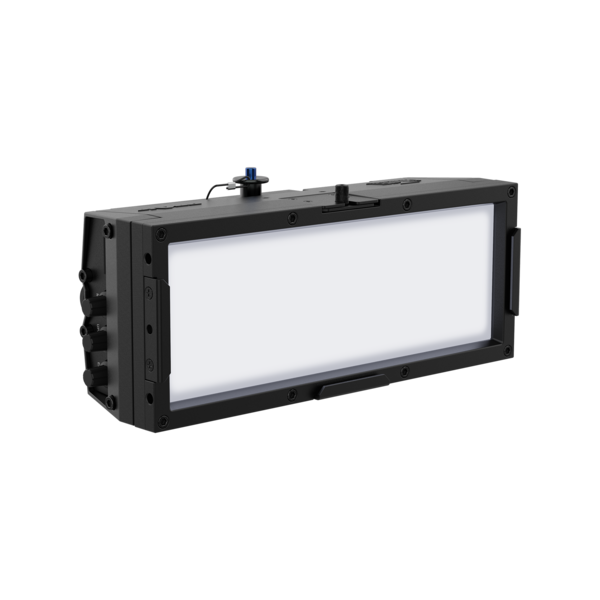

onAir Panel Min IP is a small and rugged IP65, full-spectrum LED soft light capable of facing all of the elements, outdoors or in. Ready to go on-location, or squeeze into any studio space with a low-trim, onAir Panel Min IP also features a superior quality of white light with high CRI/TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard LED menu. Conveniently switch mounting options from the Ball Head Mount with included adapters for a Baby Pin Receiver or a threaded insert for attaching a clamp. The rugged build is designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX and an onboard control option ensure camera-ready use. Its small size makes it super portable, and you can remove the main power supply for a 28 VDC input via 3-pin XLR to power the fixture from an external battery pack to add increased flexibility for all of your remote needs.

Features:

  • Produces superior white light with a high CRI and an expansive 2800 K to 8000 K CCT range.
  • Fine-tune color with plus/minus green adjustment, emulated redshift, and a virtual color wheel.
  • Built with a rugged, IP65-rated housing for reliable performance in any weather condition.
  • Achieves silent, flicker-free performance via fanless cooling and adjustable PWM for on-camera use.
  • Integrates DMX, RDM, and CRMX protocols for comprehensive wired and wireless control flexibility.
  • Accepts external battery power through a 28 VDC XLR input for maximum on-location portability.
Light source40 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy
Light source40 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy
Color temperature (range)2800 to 8000 K
Color temperature (at max)6367 K
CRI95
Beam Angle94.9°
Field Angle149.4°
Lumens2,573
Illuminance47 lux @ 5 m
Selectable PWM600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Power connectionEdison plug (local) to Seetronic Powerkon IP65
Power inputSeetronic Powerkon IP65
Power Input28 VDC, 3-pin IP65 XLR
Cable Length (power)5 ft (1.5 m)
Software ConnectionUSB
CertificationsCE, MET, FCC,
IP RatingIP65, temporary outdoor use, with pressure equalizing M12 GORE valve
Temperature (Ambient)-4 °F to 113 °F (-20 °C to 45 °C)
