OS12CX-B | 90° CONICAL OUTDOOR SPEAKER W/ U-BRACKET, 1 X 12" COAXIAL DRIVER, BLACK
OS12CX-B
90° CONICAL OUTDOOR SPEAKER W/ U-BRACKET, 1 X 12" COAXIAL DRIVER, BLACK
OS12CX-B
90° CONICAL OUTDOOR SPEAKER W/ U-BRACKET, 1 X 12" COAXIAL DRIVER, BLACK
- UM : EA

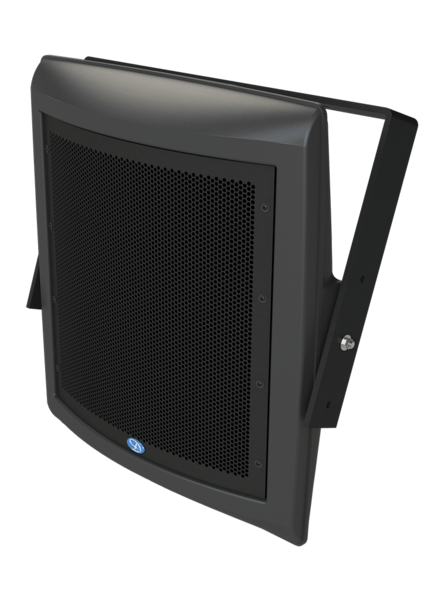

The OS12CX-B is a fully weatherized loudspeaker featuring a 12-inch/1-inch coaxial driver designed for short throw applications. The compact enclosure incorporates a full range Synergy Horn and a Synergy crossover network to provide phase alignment between frequency bands, minimizing off-axis distortion and improving frequency response consistency over distance. The system includes a multistage Sentinel protection circuit that limits overloads to the high-frequency driver without affecting dynamic range.
The loudspeaker is suitable for outdoor installations including sports venues, arenas, and recreational areas. It is supplied with a heavy-duty aluminum mounting bracket and angle strap for secure installation. For optimal performance, the OS12CX-B can be paired with compatible amplifiers or processors offering DSP capabilities.
| Coverage Pattern | 90° nominal |
|---|---|
| Operating Frequency Range | 69 Hz – 21.7 kHz +/- 3 dB |
| Continuous Output | 119 dB SPL |
| Peak Output | 125 dB SPL |
| Maximum Linear SPL 1M AES75 | 131.2 dB SPL |
| Sensitivity | 95 dB (2.83Vs into rated impedance, at 1 meter) |
| Driver Complement | 1 x 12″ coaxial |
| Rated Impedance | 8ohm |
| Power Rating | 300 W continuous |
| Item Name | OS12CX-B |
