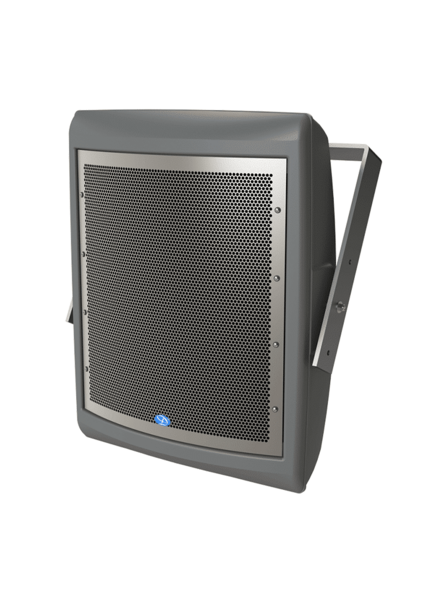

OS15CX-G | 60° X 40° COAXIAL OUTDOOR SPEAKER W/ U-BRACKET, 1 X 15" COAXIAL DRIVER, GREY
OS15CX-G
60° X 40° COAXIAL OUTDOOR SPEAKER W/ U-BRACKET, 1 X 15" COAXIAL DRIVER, GREY
OS15CX-G
60° X 40° COAXIAL OUTDOOR SPEAKER W/ U-BRACKET, 1 X 15" COAXIAL DRIVER, GREY
- UM : EA
The OS15CX-G is an outdoor loudspeaker featuring a 15-inch diameter, 1.3-inch coaxial driver configured within a compact full-range Synergy Horn. It is designed for short-throw sound reinforcement applications. The loudspeaker incorporates a Synergy crossover network that ensures phase alignment between frequency bands, enabling the physically separated drivers to combine coherently, reducing off-axis frequency response distortions.
The enclosure includes a Sentinel protection circuit for safeguarding the high-frequency driver. The OS15CX-G comes equipped with a heavy-duty aluminum mounting bracket and angle strap for installation. It is compatible with Danley amplifiers and processors that provide DSP-based performance optimization and driver protection.
| Coverage Pattern | 60° x 40° |
|---|---|
| Operating Frequency Range | 64 Hz – 18 kHz (-3 dB) |
| Continuous Output | 124 dB SPL |
| Peak Output | 130 dB SPL |
| Maximum Linear SPL 1M AES75 | 137.1 dB SPL |
| Sensitivity | 97 dB (2.83 V @ 1 m, whole space) |
| Driver Complement | 1 x 15″ coaxial |
| Rated Impedance | 8ohm |
| Power Rating | 500 W continuous |
| Item Name | OS15CX-G |
