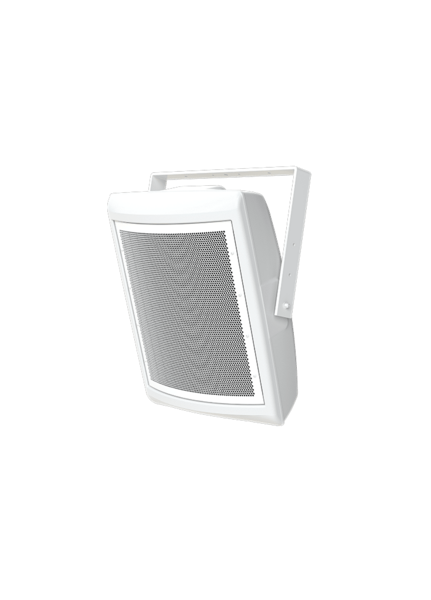

OS15CX-W | 60° X 40° OUTDOOR SPEAKER W/ U-BRACKET, 1 X 15" COAXIAL DRIVER, WHITE
OS15CX-W
60° X 40° OUTDOOR SPEAKER W/ U-BRACKET, 1 X 15" COAXIAL DRIVER, WHITE
OS15CX-W
60° X 40° OUTDOOR SPEAKER W/ U-BRACKET, 1 X 15" COAXIAL DRIVER, WHITE
- UM : EA
The OS15CX-W is an outdoor loudspeaker featuring a 15-inch coaxial driver with a 1.3-inch throat diameter, housed in a weather-resistant enclosure. It employs a compact full-range Synergy Horn with a Synergy crossover network that ensures phase alignment between frequency bands, enabling the separated bands to combine coherently at the horn output. This design reduces off-axis frequency response distortions.
The speaker includes a Sentinel protection circuit for the high-frequency driver and is equipped with a heavy-duty aluminum mounting bracket and angle strap. The OS15CX-W is compatible with amplifiers and processors that provide DSP capabilities for optimized performance and protection.
| Coverage Pattern | 60° x 40° |
|---|---|
| Operating Frequency Range | 64Hz – 18KHz -3dB |
| Continuous Output | 124 dB SPL |
| Peak Output | 130 dB SPL |
| Maximum Linear SPL 1M AES75 | 137.1 dB SPL |
| Sensitivity | 97 dB (2.83V at 1 meter) |
| Driver Complement | 1 x 15" coaxial |
| Rated Impedance | 8ohm |
| Power Rating | 500 W continuous |
| Item name | OS15CX-W |
