OS80-B | 80° CONICAL OUTDOOR SPEAKER W/ U-BRACKET, 1 X 12" COAXIAL DRIVER, BLACK
OS80-B
80° CONICAL OUTDOOR SPEAKER W/ U-BRACKET, 1 X 12" COAXIAL DRIVER, BLACK
OS80-B
80° CONICAL OUTDOOR SPEAKER W/ U-BRACKET, 1 X 12" COAXIAL DRIVER, BLACK
- UM : EA

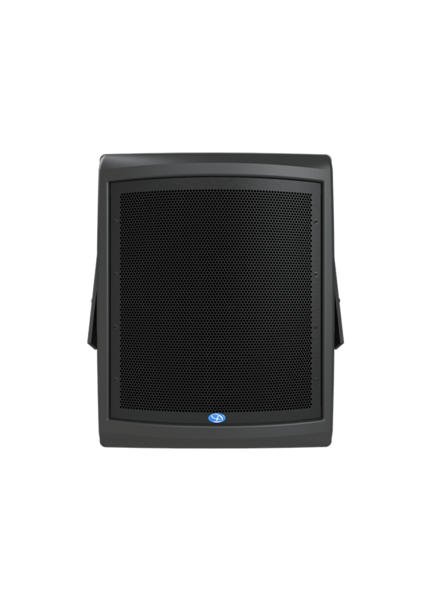

The Danley OS80 (Black) is a compact, high-output loudspeaker designed for outdoor and harsh-environment applications where speech intelligibility and musical clarity are critical. Built around Danley’s patented Synergy Horn™ technology, the OS80 delivers phase-coherent performance with exceptional pattern control in a weather-resistant enclosure.
Engineered for stadiums, sports fields, theme parks, houses of worship, transportation hubs, and distributed outdoor paging systems, the OS80 provides consistent coverage and high SPL from a compact footprint. The fully sealed enclosure is designed to withstand moisture, UV exposure, and demanding environmental conditions, making it ideal for permanent outdoor installations.
The OS80 offers controlled dispersion for even coverage while minimizing spill and unwanted reflections—especially valuable in reverberant or open-air environments. Its rugged black finish blends seamlessly into architectural and performance spaces while maintaining professional-grade output and reliability.
Danley’s synergy-based design ensures point-source clarity with improved coherence across the frequency range, reducing comb filtering and improving intelligibility compared to traditional multi-driver boxes.
Key Features
- Danley patented Synergy Horn™ technology
- Compact high-output loudspeaker
- Weather-resistant enclosure for outdoor use
- Controlled dispersion for consistent coverage
- Excellent speech intelligibility and music clarity
- Durable black finish for architectural integration (other colors also available)
- Designed for permanent installation environments
| Coverage Pattern | 80° Conical |
|---|---|
| Operating Frequency Range | 128 Hz – 16 kHz |
| Continuous Output 1M AES2 | 127 dB SPL |
| Peak Output AES2 | 133 dB SPL |
| Maximum Linear SPL 1M AES75 | 137.9 dB SPL |
| Sensitivity | 100 dB (2.83V at 1m) |
| Driver Complement | Low 1 x 12" |
| Rated Impedance | 8ohms |
| Power Rating | 400 W continuous |
| Item name | OS80-B |
Use Options
· Outdoor stadiums and athletic facilities
· Theme parks and entertainment venues
· Distributed outdoor paging and music systems
· Hospitality and resort installations
· Transportation terminals
· Large courtyard or campus audio systems
· Outdoor overflow areas of any venue requiring a musical speaker for outdoor permanent installation
Also Consider
· Danley-compatible mounting brackets or hardware for pole mounting, etc – See Danley options and Adaptive Technologies
· Weather-rated speaker cabling (West Penn Wire options)
· Powersoft, Ashly, or Danley-approved amplifiers
· DSP processing (Symetrix, BSS, AtlasIED Atmosphere platform)
· Outdoor-rated junction boxes and conduit
· Subwoofer support (Danley TH series or compatible models)
