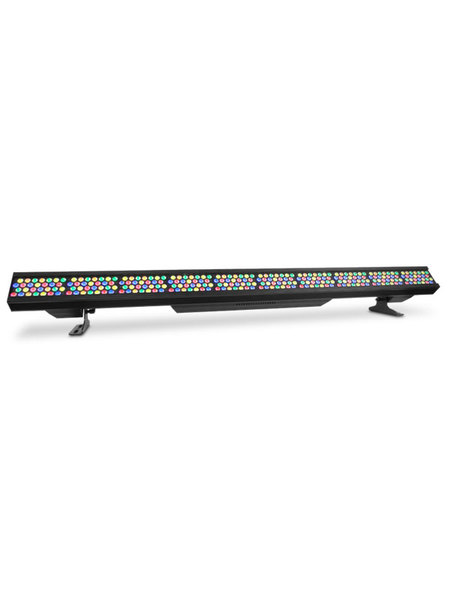

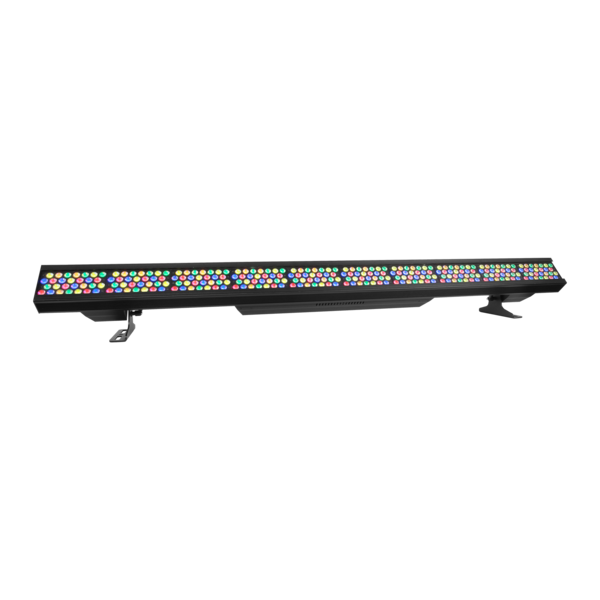

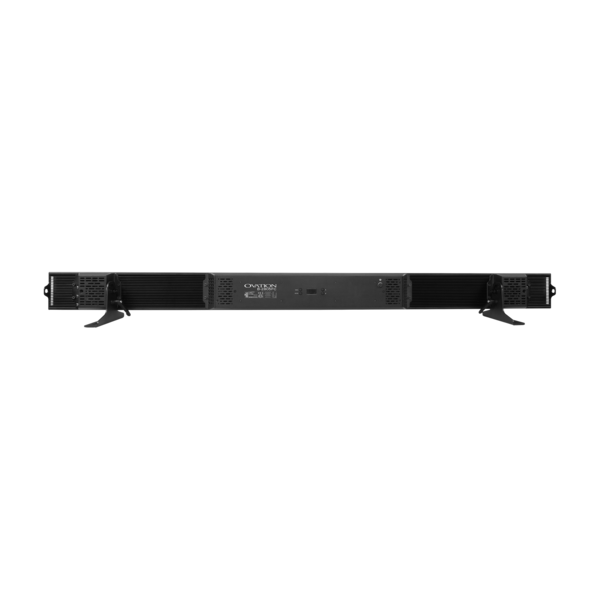

Ovation B-2805FC is the first batten-style fixture to take advantage of the extended color capabilities of the RGBA-Lime color mixing system. Control is easier than ever thanks to the incorporation of RDM, Art-Net and sACN in addition to standard DMX control. For maximum flexibility, up to 10 sections can be controlled individually while its easily accessible Virtual Color Wheel and Color Temperature presets make programming a
breeze. An included holographic filter locks into place for enhanced wall/cyc grazing ability.
Features:
- Utilizes 280 RGBA-Lime LEDs to produce a wide color temperature range of 2800K to 10000K.
- Achieves exceptionally smooth fades with 16-bit dimming resolution for master and individual colors.
- An included holographic filter enhances color mixing for smooth, even wall and cyclorama washes.
- Supports versatile control options including DMX, RDM, Art-Net, and sACN protocols.
- Features adjustable Pulse Width Modulation (PWM) for flicker-free operation in broadcast applications.
- Delivers nearly silent operation, making it ideal for noise-sensitive theatre and studio applications.
| Light Source | 280 LEDs (60 red, 60 green, 60 blue, 40 amber, 60 lime) 3 W, (650 mA), 50,000 hours life expectancy |
|---|---|
| Color Temperature (range) | 2800 K to 10000 K |
| CRI (3200 K) | 80 |
| Installed Optics | 20° |
| Beam Angle (horizontal) | 25° |
| Beam Angle (vertical) | 20° |
| Beam Angle (horizontal w/filter) | 52° |
| Beam Angle (vertical w/filter) | 20° |
| Field Angle (horizontal) | 42° |
| Field Angle (vertical) | 40° |
| Field Angle (horizontal w/filter) | 83° |
| Field Angle (vertical w/filter) | 40° |
| Lumens | 32,673 |
| Illuminance | 5,586 lux @ 5 m |
| Illuminance (w/filter) | 2,320 lux @ 5 m |
| Selectable PWM | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz |
| Power Connection | Edison (Local) plug to Neutrik® powerCON® |
| Power Input | Neutrik® powerCON® |
| Power Output | Neutrik® powerCON® |
| Data Connectors | 3- and 5-pin XLR, Amphenol etherCON® Compatible |
| Cable Length (power) | 5 ft (1.5 m) |
| Certifications | CE, FCC, MET, UKCA |
| IP Rating | IP20, dry location |
