OVATIONF145WW-2 | OVATION F-145WW FRESNEL, WARM WHITE LIGHT WITH HIGH CRI & MOTORIZED ZOOM, RANGE OF 25-65*

  • MAP: $980.00 / EA
  • List Price: $1,125.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
OVATION F-145WW FRESNEL, WARM WHITE LIGHT WITH HIGH CRI & MOTORIZED ZOOM, RANGE OF 25-65*
OVATION F-145WW FRESNEL, WARM WHITE LIGHT WITH HIGH CRI & MOTORIZED ZOOM, RANGE OF 25-65*
Click image to enlarge
OVATION F-145WW FRESNEL, WARM WHITE LIGHT WITH HIGH CRI & MOTORIZED ZOOM, RANGE OF 25-65*
OVATION F-145WW FRESNEL, WARM WHITE LIGHT WITH HIGH CRI & MOTORIZED ZOOM, RANGE OF 25-65*

OVATIONF145WW-2
OVATION F-145WW FRESNEL, WARM WHITE LIGHT WITH HIGH CRI & MOTORIZED ZOOM, RANGE OF 25-65*

  • UM : EA
  • Estimated Weight: 15.0

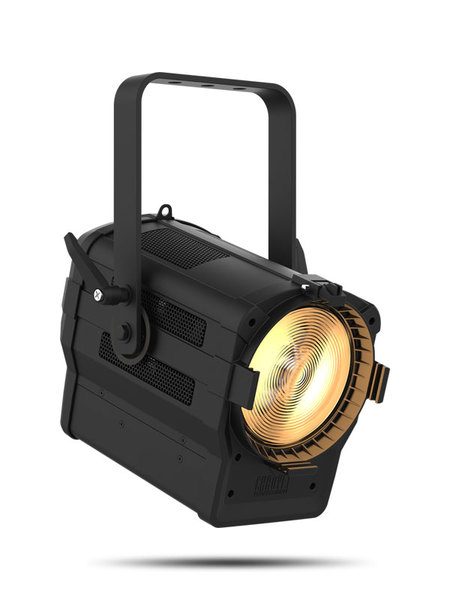

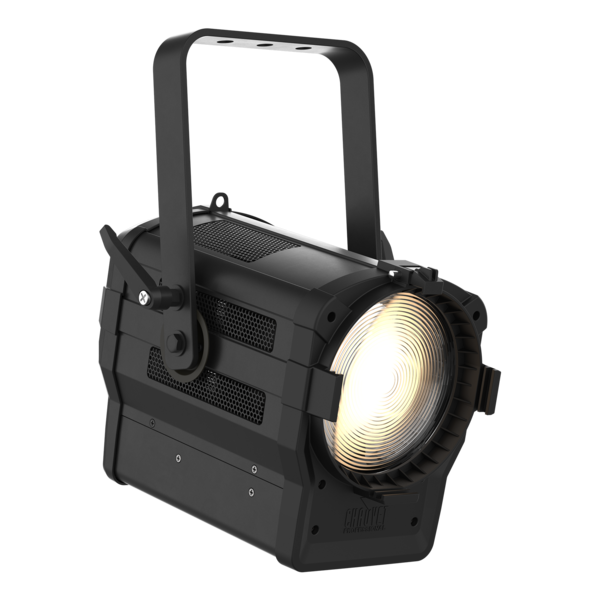

Ovation F-145WW delivers a beautifully soft and flat field of warm white light with high CRI and a motorized zoom range of 16° to 65°, making it a versatile LED replacement for aging incandescent six-inch Fresnels. A virtually quiet operation and smooth 16-bit dimming control make it a great choice for theatrical and/or studio applications.

Features:

  • Features a 70W warm white LED with output comparable to a 650W incandescent Fresnel.
  • Delivers superior color rendering with a high CRI of 97 and 3096 K color temperature.
  • Offers exceptionally smooth fades with 16-bit dimming and four selectable dim modes.
  • Engineered for virtually silent operation, ideal for noise-sensitive theatrical and studio use.
  • Supports both DMX and RDM protocols for versatile and simplified fixture management.
  • Allows for simple power linking of up to 35 units at 230 V for fast setups.

Light Source1 LED (WW) 70 W, (3.6 A), 50,000 hours life expectancy
Color Temperature (at full)3096 K
CRI97
Beam Angle16° to 48°
Field Angle25° to 65°
Zoom Range16° to 65°
Lumens (25°)2,787
Lumens (65°)4,266
Selectable PWM600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Power ConnectionEdison (local) plug to Seetronic Powerkon IP65
Power InputSeetronic Powerkon IP65
Power OutputSeetronic Powerkon IP65

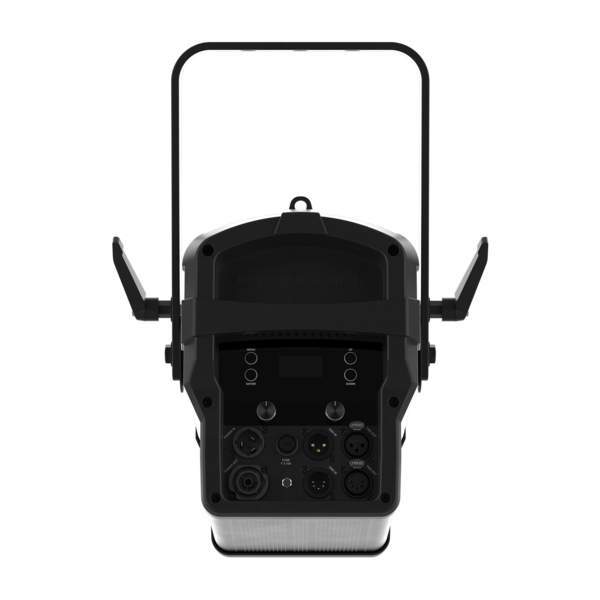

Data Connectors3- and 5-pin XLR
Cable Length (power)5 ft (1.5 m)
CertificationsCE, MET, FCC, UKCA
IP RatingIP20, dry location
Temperature (Ambient)-4 °F to 113 °F (-20 °C to 45 °C)
