OVATIONF415FC-2 | OVATION F-415FC, 6” FRESNEL, FULL COLOR LED(RGBAL), VIRTUAL COLOR WHEEL, MOTORIZED ZOOM FROM 27°-68°
OVATIONF415FC-2
OVATION F-415FC, 6” FRESNEL, FULL COLOR LED(RGBAL), VIRTUAL COLOR WHEEL, MOTORIZED ZOOM FROM 27°-68°
OVATIONF415FC-2
OVATION F-415FC, 6” FRESNEL, FULL COLOR LED(RGBAL), VIRTUAL COLOR WHEEL, MOTORIZED ZOOM FROM 27°-68°
- UM : EA
- Estimated Weight: 17.0

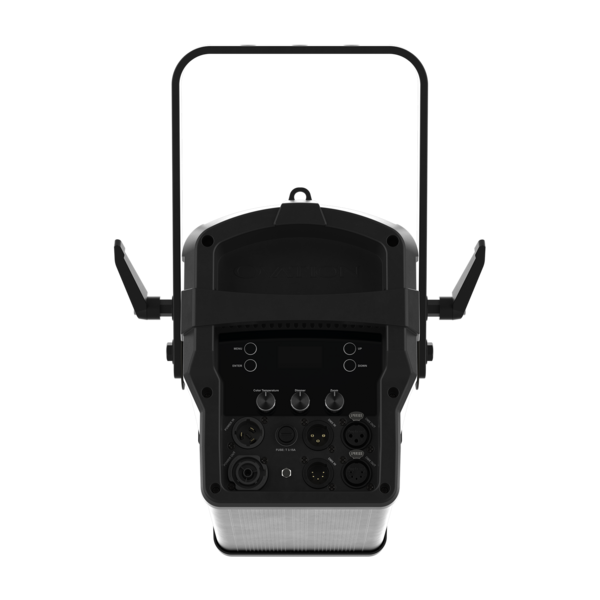

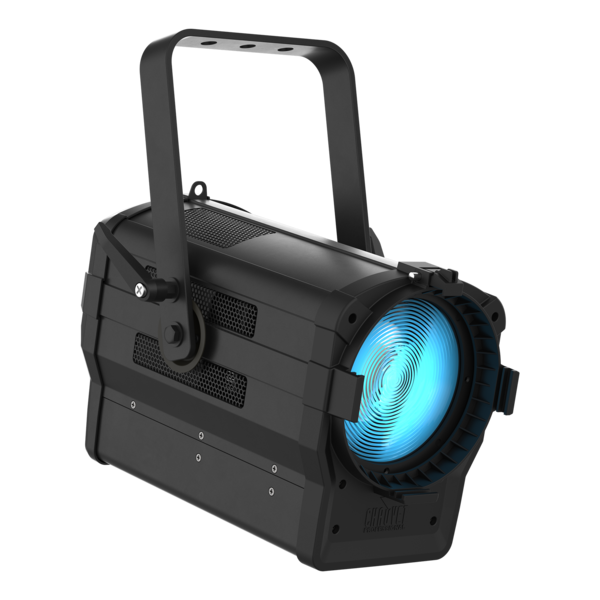

Ovation F-415FC is a 6” Fresnel style fixture that features CHAUVET PROFESSIONAL's advanced RGBAL LED system. The unit projects a bright, beautifully soft field of light from subtle pastels to punchy saturates, and nearly any temperature of white. A motorized zoom with a 14° – 68° field range allows you to add light where it is needed. Control of the virtual color wheel, zoom and output can be via DMX or on-board dials. It’s also RDM-enabled to ease installation and offers adjustable PWM for flicker-free use on camera.
Features:
- Advanced RGBAL LED system produces a full color spectrum and whites from 2800K to 6500K.
- Provides a versatile motorized zoom with a wide 14° to 68° field angle for flexible coverage.
- Features 16-bit dimming for smooth fades and adjustable PWM for flicker-free camera operation.
- A fanless cooling system ensures completely silent operation ideal for studios and theatres.
- Offers flexible control options with onboard dials, DMX, and RDM for simplified fixture management.
- Includes a virtual color wheel and CCT presets for quick access to popular colors and whites.
| Light Source | 46 LEDs (10 red, 10 green, 6 blue, 8 amber, 12 lime) 3 to 5 W, (1 A), 50,000 hours life expectancy. |
|---|---|
| Color Temperature (range) | 2800 to 6500 K |
| CRI (3200 K) | 91 |
| Beam Angle | 14° to 43° |
| Field Angle | 27° to 68° |
| Zoom Range | 14° to 68° |
| Lumens (27°) | 1,877 |
| (68°) | 2,815:Illuminance (27°) |
| 915 lux @ 5 m | (68°): 190 lux @ 5 m |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz |
| Power Connection | Edison (local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 3- and 5-pin XLR |
| Cable Length (power) | 5 ft (1.5 m) |
| Certifications | CE, MET, FCC, UKCA |
| IP Rating | IP20, dry location |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
