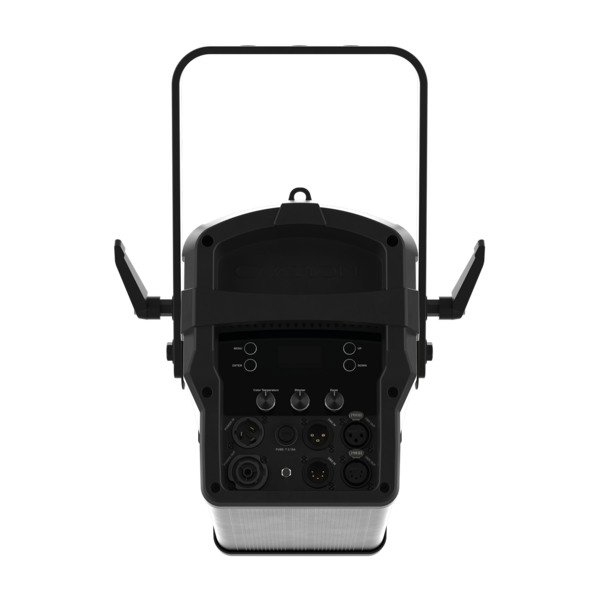

OVATIONF415VW-2 | INCLUDES: POWERCON POWER CORD, BATTERY POWER PORT, CONTROL: 3-PIN DMX, 5-PIN DMX
OVATIONF415VW-2
INCLUDES: POWERCON POWER CORD, BATTERY POWER PORT, CONTROL: 3-PIN DMX, 5-PIN DMX
OVATIONF415VW-2
INCLUDES: POWERCON POWER CORD, BATTERY POWER PORT, CONTROL: 3-PIN DMX, 5-PIN DMX
- UM : EA
- Estimated Weight: 17.0

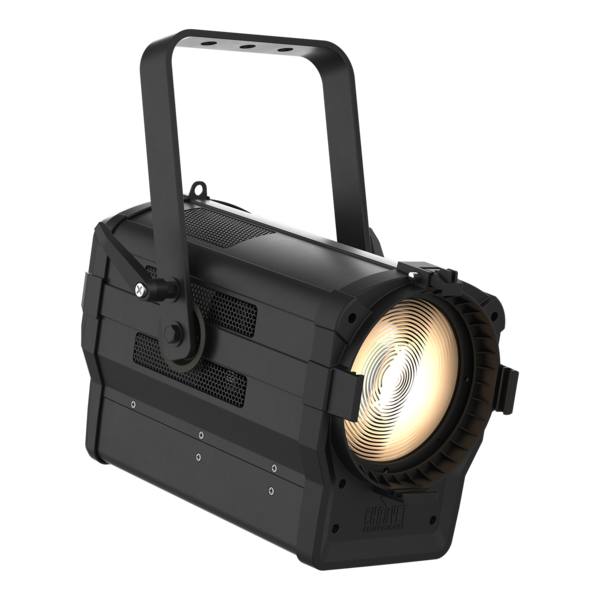

Ovation F-415VW is a 6” Fresnel style variable white fixture that utilizes CHAUVET PROFESSIONAL's unique 6-color LED system. The unit projects a bright, beautifully soft field of light in nearly any temperature of white with high CRI and CQS making it ideal for theatres and TV studios. Each Color Temperature can be further adjusted for +/- green and a motorized zoom with a 14° – 68° field range that allows you to add light where it is needed. The Color Temperature and hue along with zoom and output can be controlled via DMX or on-board dials. Adding to its versatility, the RDM-enabled unit enables a 28 V external battery operation and offers adjustable PWM for flicker-free use on camera.
Features:
- Features a smooth, motorized zoom with a versatile field range from 14° to 68°.
- Delivers an expansive color temperature range from 2800 K to 8000 K.
- Achieves exceptionally smooth fades with high-resolution 16-bit dimming control.
- Supports 28 VDC external battery power via 3-pin XLR for mobile applications.
- Provides virtually silent operation, ideal for noise-sensitive studio and theatre environments.
- Offers independent 6-color engine control for vibrant color accents when needed.
| Light Source | 46 LEDs (4 red, 4 green, 6 blue, 6 R. Blue, 10 Orange, 16 Lime) 3 to 4 W, (1 A), 50,000 hours life expectancy |
|---|---|
| Color Temperature (range) | 2800 to 8000 K |
| CRI | 89 to 93 |
| Beam Angle | 14° to 43° |
| Field Angle | 27° to 68° |
| Zoom Range | 14° to 68° |
| Lumens (27°) | 1,631 |
| Illuminance (27°) | 800 lux @ 5 m |
| Illuminance drop percentage (fan silent) | 23% |
| Selectable PWM | 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz |
| Control Protocol | DMX, RDM |
| DMX Channels | 2, 5, 7, 10, 14, 17 or 19 |
| Modes/Personalities | 8 personalities (2ch, 5ch, 7ch1, 7ch2, 10ch, 14ch, 17ch, 19ch) |
| Certifications | CE, MET, FCC, UKCA |
| IP Rating | IP20, dry location |
| Temperature (Ambient) | -4 °F to 113 °F (-20 °C to 45 °C) |
