P3R=-H20 | PSM300 WIRELESS BODYPACK RECEIVER / 24-BIT DIGITAL AUDIO CLARITY & 90 METER RANGE/ H20: 518 - 541 MH
P3R=-H20
PSM300 WIRELESS BODYPACK RECEIVER / 24-BIT DIGITAL AUDIO CLARITY & 90 METER RANGE/ H20: 518 - 541 MH
P3R=-H20
PSM300 WIRELESS BODYPACK RECEIVER / 24-BIT DIGITAL AUDIO CLARITY & 90 METER RANGE/ H20: 518 - 541 MH
- UM : EA
- Estimated Weight: 1.1

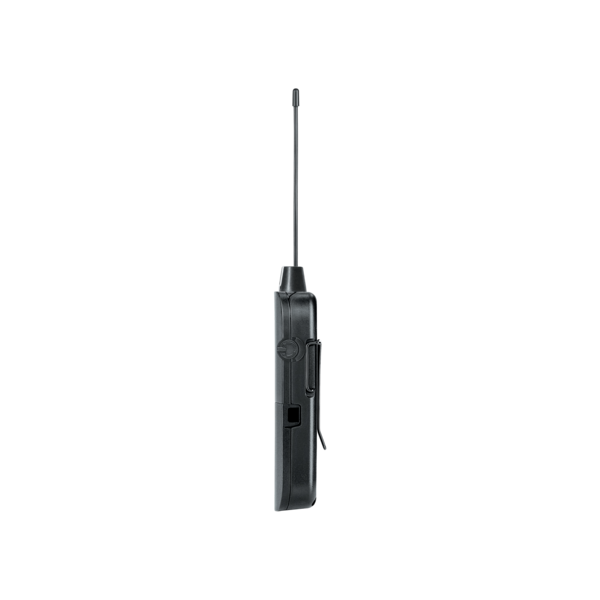

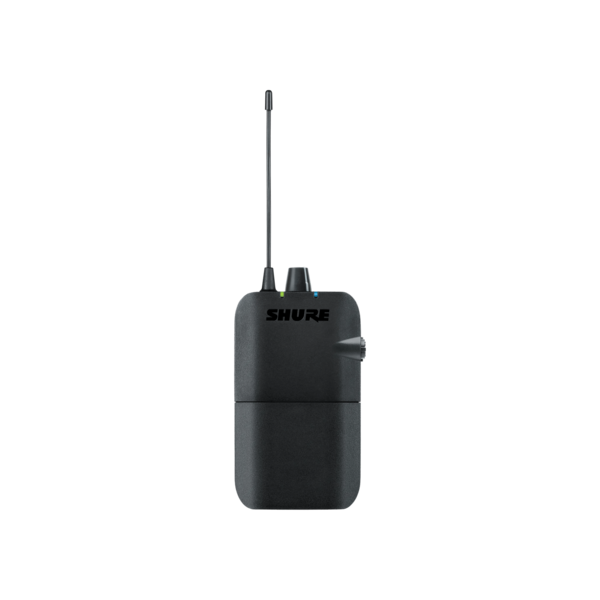

The P3R is a wireless stereo bodypack receiver for use with the PSM 300 Personal Monitor System.
With 24-bit digital audio clarity and up to 90 meters of range, the P3R offers reliable wireless freedom that covers every corner of the stage. Simply connect a set of earphones and adjust the controls to create a wireless personal mix. Patented Audio Reference Companding ensures the clearest sound, with ultra-low noise and no artifacts. Use MixMode® technology to customize the mono blend from two channels of audio, or select stereo mode and adjust the left/right balance as desired. One-touch frequency scan and automatic frequency selection enables quick setup and connection to a P3T transmitter via IR sync.

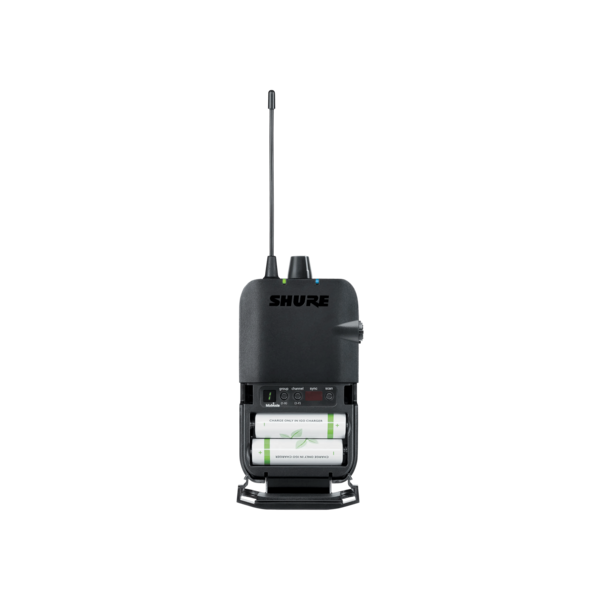

Includes zippered bag and 2 AA batteries.
Features:
- Slim, lightweight, durable form factor
- Frequency scan and IR sync quickly finds and assigns a clean channel
- MixMode technology enables adjustment of two independent monitoring mix levels
- Stereo mode enables adjustment of left/right balance
- Easy to adjust volume knob and mix control
- 2 AA batteries provide up to 7 hours of continuous operation
- Power save mode preserves battery life when earphones are not connected
- Power and battery status LED
| Battery Life - Alkaline, Up To (h) | 7 |
|---|---|
| Adjacent Channel Rejection (dB) | >60 |
| Intermodulation Attenuation (dB) | 50 |
| Blocking (dB) | 60 |
| Audio Output Power (mW) | 40 |
| Minimum Load Impedance (Ω) | 16 |
| Scan Features | Group Scan, Channel Scan |
| Batteries | AA |
| Receiver Housings | Molded ABS |
| RF Output Power (Country specific) (mW, E.I.R.P. max) | 30 |
| Wireless Frequency Band | H20 (518-542 MHz) |
