P3T=-H20
PSM300 WIRELESS TRANSMITTER / RUGGED ALL-METAL CHASSIS / H20: 518 - 541 MHZ
Click image to enlarge
P3T=-H20
PSM300 WIRELESS TRANSMITTER / RUGGED ALL-METAL CHASSIS / H20: 518 - 541 MHZ
- UM : EA
- Estimated Weight: 0.2
Dependable wireless transmission and 24-bit digital audio combine to deliver a superior personal monitoring mix for every performance.
Send 2 channels of audio to a bodypack receiver up to 300 feet (90 m) away, with patented Audio Reference Companding to ensure transparent sound quality with no artifacts or dropouts.
Features:
- Transmitter sends a stereo or mono mix wirelessly to performers onstage
- One-touch IR sync on user-friendly front-panel controls instantly links transmitter to receiver

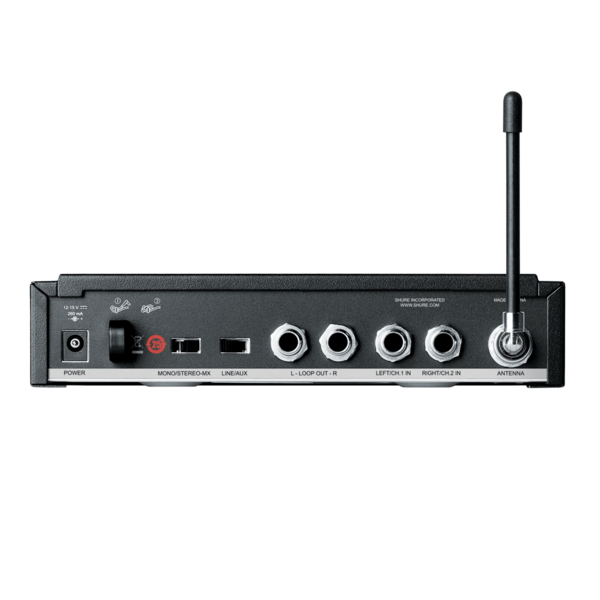

- Rear-panel ¼" (6.3 mm) TRS balanced inputs and loop outputs provide versatile connectivity to audio sources and other P3T units
- Up to 30 mW output power (regionally dependent)
- High-contrast LCD screen with left / right audio output meters
- Selectable line / aux level
- When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
| RF Output Impedance (Ω) | 50 |
|---|---|
| Detachable Antennas | yes |
| Input impedance (Ω) | 40000 |
| Rack Mount Accessories | Included Rack mounts brackets |
| Antenna Type | External 1/4-wave |
| Type Of Power Supply | External |
| Input Connectors | 6,3mm |
| Input Connectors | 6,3mm |
| Transmitter Housings | Metal |
| Wireless Frequency Band | H20 (518-542 MHz) |
×
×
