PCMCPU | CENTRAL PROCESSING UNIT, POWER SUPPLY NOT INCLUDED

PCMCPU
CENTRAL PROCESSING UNIT, POWER SUPPLY NOT INCLUDED

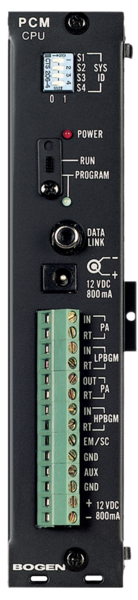

The Bogen Model PCMCPU is the microprocessor module for the Bogen PCM Zone Paging System. One module is required per assembly (up to three PCMZPM zone modules). The PCMCPU module provides power, data and audio connections for the PCM system.

FEATURES

Voice Channel

• Up to 99 zones of paging (in 3 zone increments) and sub-zone group paging (up to 32 zone groups, each with up to 99 zones)
• Override paging (using loop start or contact closure)
• Talkback paging (centrally-amplified zones only)
• High-powered central paging (can be combined with Low Power Paging)
• Low-power paging to amplified speakers (can be combined with High-Power Paging) Privacy beep on talkback zones
• Pre-announce tone PCMCPU 5

Background Music (BGM)

• Low-power distributed (buffered for up to 50 amplified speakers)
• High-power, using dedicated BGM amplifier
• High-power using a single paging/BGM amplifier
• BGM disable to individual zones
• Local BGM input on each individual zone module Signaling
• Night ringer (90V or contact closure activation)
• Code calling (2 types - echo & pattern)
• Emergency/shift change tone (tone and duration selectable)

Other Features

• DTMF setting of all operating parameters
• External C-form relay contacts
• Relay driver output per zone
• Non-volatile memory for setup data (no backup battery required)
• Talk/Talkback selection per zone
• Setup tone to assist in volume setting, etc.

Specialized Features

• PCMTBM Modules provide time-triggered signaling with built-in, real-time clock
• PCMTBM Module provides talkback paging
