PD5122 | HIGH OUTPUT LOW FREQUENCY LOUDSPEAKER WITH 12" SLOT LOADED WOOFERS. TWO 300MM (12 IN.)

  • MAP: $3,550.00 / EA
  • List Price: $3,550.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT LOW FREQUENCY LOUDSPEAKER WITH 12" SLOT LOADED WOOFERS. TWO 300MM (12 IN.)
Click image to enlarge

PD5122
HIGH OUTPUT LOW FREQUENCY LOUDSPEAKER WITH 12" SLOT LOADED WOOFERS. TWO 300MM (12 IN.)

  • UM : EA

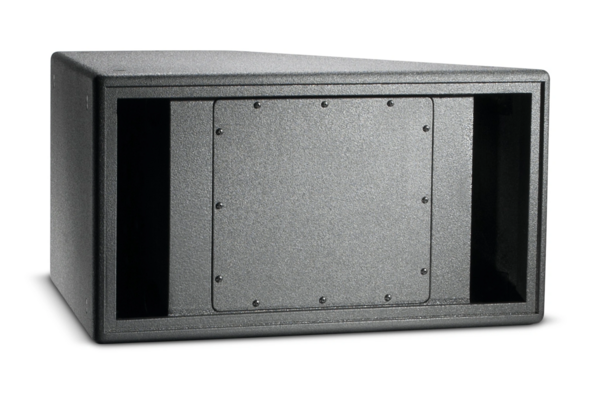

The PD5122 is a dual 12-inch low-frequency extension unit designed for integration with PD5000 series mid/high-only or full-range systems. It can be deployed as a flown or ground-supported module to provide high power low-frequency output.

Features:

  • Dual 300 mm (12 in) low frequency drivers
  • Extends LF pattern control of PD6322 systems
  • Slot-loaded configuration duplicates LF performance of PD6322
Frequency Range 41 Hz to 1 kHz
Frequency Response 49 Hz to 300 Hz
Transducer Power Rating (AES) 1600 W (6400 W peak) 2 hrs
System Power Rating 1200 W (4800 W peak), 100 hrs
Maximum SPL (1m) 128 dB cont avg (134 dB peak)
Input Modes Drivers Parallel / Drivers Discrete
Nominal Impedance 4ohms in parallel-drive mode
Sensitivity 116 dB SPL
LF Driver 2 x JBL 2206H 12 in VGC drivers with 4 in voice coil, minimal power compression and low distortion
Input Connectors Neutrik Speakon NL4 and CE-compliant covered barrier strip terminals
