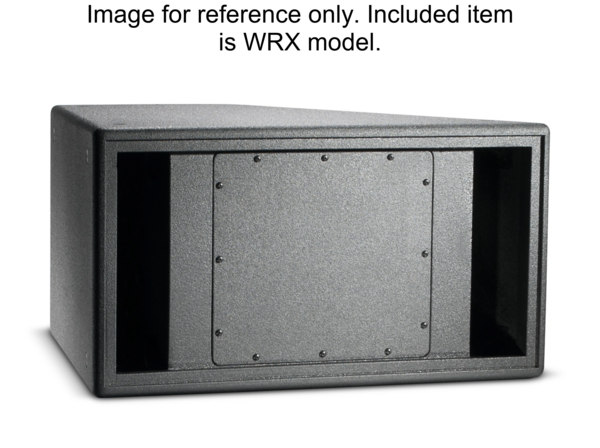

PD5122-WRX | HIGH OUTPUT LOW FREQUENCY LOUDSPEAKER WITH 12" SLOT LOADED WOOFERS. TWO 300MM (12 IN.)

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT LOW FREQUENCY LOUDSPEAKER WITH 12" SLOT LOADED WOOFERS. TWO 300MM (12 IN.)
Click image to enlarge

PD5122-WRX
HIGH OUTPUT LOW FREQUENCY LOUDSPEAKER WITH 12" SLOT LOADED WOOFERS. TWO 300MM (12 IN.)

  • UM : EA
  • Estimated Weight: 150.0

The PD5122-WRX is a dual 12-inch low frequency extension unit designed for use as either a flown or ground-supported module. It serves as a high-power low frequency component intended to complement mid/high-only or full-range systems within the PD5000 series.

Features:

  • Dual 300 mm (12 in) low frequency drivers
  • Extends LF pattern control of PD6322 systems
  • Slot-loaded configuration duplicates LF performance of PD6322
Frequency Range 41 Hz to 1 kHz
Frequency Response 49 Hz to 300 Hz
Transducer Power Rating 1600 W (6400 W peak), 2 hrs
System Power Rating 1200 W (4800 W peak), 100 hrs
Maximum SPL (1m) 128 dB continuous average (134 peak)
Input Modes Drivers Parallel / Drivers Discrete
Nominal Impedance 4ohms in parallel-drive mode
Sensitivity 116 dB-SPL
LF Driver 2 x JBL 2206H 12 in VGC drivers with 4 in voice coil
Input Connectors Neutrik Speakon NL4, CE-compliant barrier strip terminals
