PD525S-WRC | DUAL 15" 2275H DIFFERENTIAL DRIVER WITH DUAL 75MM (3 IN)VOICE COILS AND DUAL MAGNETIC GAP SUBWOOFER

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
DUAL 15" 2275H DIFFERENTIAL DRIVER WITH DUAL 75MM (3 IN)VOICE COILS AND DUAL MAGNETIC GAP SUBWOOFER
Click image to enlarge

PD525S-WRC
DUAL 15" 2275H DIFFERENTIAL DRIVER WITH DUAL 75MM (3 IN)VOICE COILS AND DUAL MAGNETIC GAP SUBWOOFER

  • UM : EA
  • Estimated Weight: 136.0

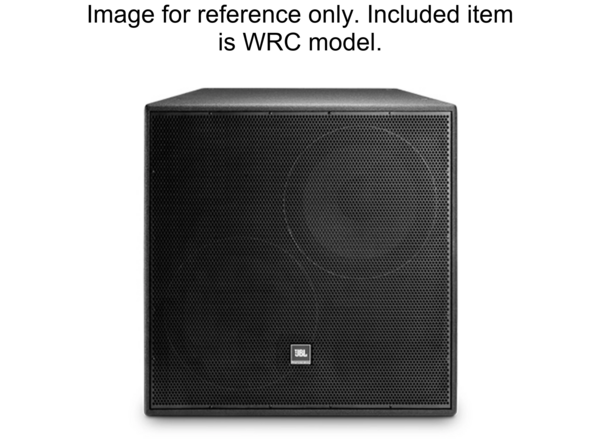

The PD525S-WRC is a dual 15-inch subwoofer featuring two 380 mm (15 in) dual coil, dual gap Differential Drive low-frequency drivers. The drivers are mounted in a front-loaded, vented enclosure to support low-frequency sound reproduction.

The cabinet has a trapezoidal shape and includes M10 threaded suspension points for mounting and rigging.

Features:

  • Two 380 mm (15 in) low frequency drivers
  • Low frequency extension to 40 Hz
  • Enclosure dimensions compatible with all PD500 Series models
Frequency Range (-10dB) 28 Hz to 3.8 kHz
Frequency Response (±3 dB) 40 Hz to 1.1 kHz
Transducer Power Ratings (AES) 2000 W (8000 W peak) 2 hrs
System Power Rating 1000 W, 100 hrs
Sensitivity 102 dB (avg 40-1 kHz)
Maximum SPL (1m) 135 dB cont (141 dB peak)
Input Modes Drivers Parallel / Drivers Discrete
Nominal Impedance 4ohms in parallel-drive mode, 2 x 8ohms in discrete drive mode
LF Driver 2 x JBL 2275H 15 in Dual Coil Dual Gap Differential Drive drivers with 3 in voice coils
Enclosure Trapezoidal with 10 degree side angles, 18 mm exterior grade 11-ply Finnish birch plywood
