PD525S-WRX | DUAL 15" 2275H DIFFERENTIAL DRIVER WITH DUAL 75MM(3 IN)VOICE COILS AND DUAL MAGNETIC GAP SUBWOOFER

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
DUAL 15" 2275H DIFFERENTIAL DRIVER WITH DUAL 75MM(3 IN)VOICE COILS AND DUAL MAGNETIC GAP SUBWOOFER
Click image to enlarge

PD525S-WRX
DUAL 15" 2275H DIFFERENTIAL DRIVER WITH DUAL 75MM(3 IN)VOICE COILS AND DUAL MAGNETIC GAP SUBWOOFER

  • UM : EA
  • Estimated Weight: 157.0

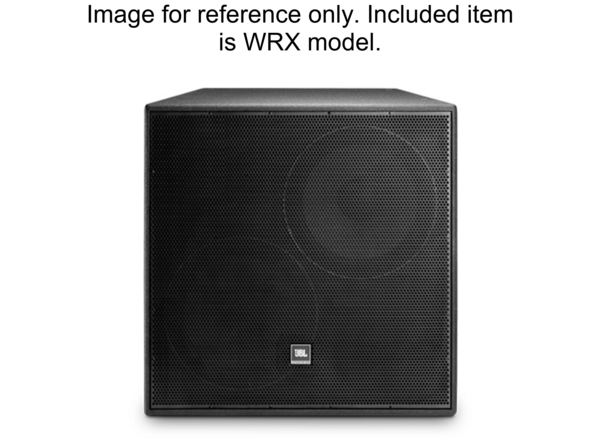

The PD525S-WRX is a dual 15-inch subwoofer featuring two 380 mm (15 in) dual coil, dual gap Differential Drive low frequency drivers. The drivers are housed in a front-loaded, vented trapezoidal cabinet.

The enclosure includes M10 threaded suspension points for mounting.

Features:

  • Two 380 mm (15 in) low frequency drivers
  • Low frequency extension to 40 Hz
  • Enclosure compatible with PD500 Series
Frequency Range 28 Hz to 3.8 kHz
Frequency Response 40 Hz to 1.1 kHz
Transducer Power Ratings (AES) 2000 W (8000 W peak) for 2 hrs
System Power Rating 1000 W for 100 hrs
Sensitivity 102 dB (avg 40-1 kHz)
Maximum SPL (1m) 135 dB continuous, 141 dB peak
Input Modes Drivers Parallel / Drivers Discrete
Nominal Impedance 4ohms (parallel), 2 x 8ohms (discrete)
LF Driver 2 x JBL 2275H 15 in Dual Coil Dual Gap Differential Drive drivers with 3 in voice coils
Finish Black DuraFlex finish (White available)
