PD544-WRC | 15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM, 40 X 40 COVERAGE PATTERN WITH 2432H 38MM

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM, 40 X 40 COVERAGE PATTERN WITH 2432H 38MM

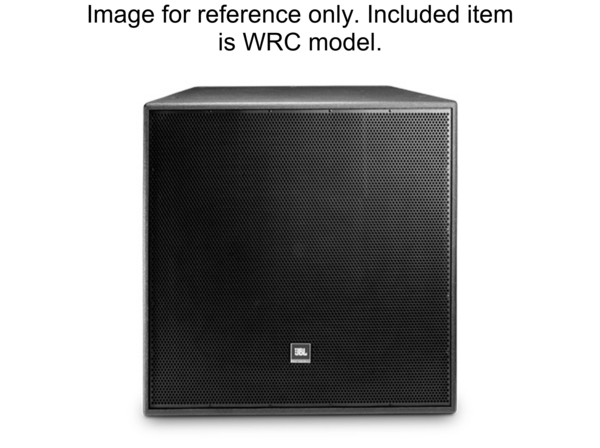

Click image to enlarge

PD544-WRC
15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM, 40 X 40 COVERAGE PATTERN WITH 2432H 38MM

  • UM : EA
  • Estimated Weight: 177.0

The PD544-WRC is a 15-inch horn-loaded full-range loudspeaker featuring a 40° x 40° horn. It is designed to provide controlled directivity with a frequency response extending down to 80 Hz. The loudspeaker can be used independently for applications where this frequency range is sufficient or paired with subwoofers to achieve extended low-frequency performance in full-range sound reinforcement systems.

Features:

  • 380 mm horn-loaded low-frequency driver
  • Large PT Progressive Transition waveguides with 40° x 40° pattern control
  • Rotatable waveguide for horizontal or vertical orientation
  • Steep-slope passive crossover network with switchable bi-amp/passive modes
Frequency Range 50Hz to 20kHz
Frequency Response 90Hz to 17kHz
Coverage Pattern 40° x 40°
Directivity Factor (Q) 31.5
Directivity Index (DI) 15 dB
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 1.2 kHz
Transducer Power Ratings (AES) LF 450W 2hrs, 300W 100hrs; HF 75W 2hrs, 50W 100hrs
System Power Rating (Passive mode) 500W 2hrs, 300W 100hrs (IEC)
Maximum SPL (1m) Bi-amp LF 133 cont (139 peak), HF 134 cont (140 peak), Passive 133 cont (139 peak)
System Sensitivity (1W @ 1m, Passive Mode) 106 dB SPL
