PD544-WRX | 15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM, 40 X 40 COVERAGE PATTERN WITH 2432H 38MM

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM, 40 X 40 COVERAGE PATTERN WITH 2432H 38MM

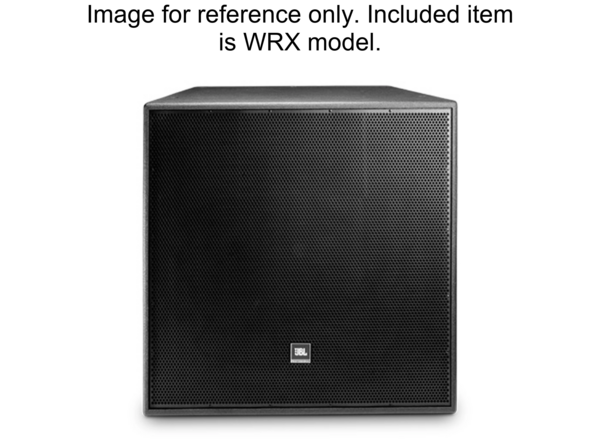

Click image to enlarge

PD544-WRX
15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER SYSTEM, 40 X 40 COVERAGE PATTERN WITH 2432H 38MM

  • UM : EA
  • Estimated Weight: 157.0

The PD544-WRX is a 15-inch horn-loaded full-range loudspeaker featuring a 40° x 40° horn configuration. It is designed to deliver high output levels with controlled directivity, suitable for both music and speech applications. The loudspeaker provides frequency response down to 80 Hz, enabling use in systems where this bandwidth is sufficient or as part of a combined setup with subwoofers for extended low-frequency performance.

Features:

  • 380 mm (15”) horn-loaded low-frequency driver
  • Large PT Progressive Transition waveguides with 40° x 40° pattern control
  • Low distortion at high SPL levels
  • Smooth frequency response
  • Rotatable waveguide for horizontal or vertical orientation
  • Steep-slope passive crossover network
  • Switchable bi-amp/passive crossover modes
Frequency Range 50Hz to 20kHz
Frequency Response 90Hz to 17kHz
Coverage Pattern 40° x 40°
Directivity Factor (Q) 31.5
Directivity Index (DI) 15 dB
Crossover Modes Bi-amp/passive switchable
Passive Crossover Frequency 1.2 kHz
Transducer Power Ratings (AES) LF 450W 2hrs, 300W 100hrs; HF 75W 2hrs, 50W 100hrs
System Power Rating (Passive mode) 500W 2hrs, 300W 100hrs (IEC)
Maximum SPL (1m) LF 133 cont (139 peak) bi-amp, HF 134 cont (140 peak), Passive 133 cont (139 peak)
