PD564-WRC | 15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER 2-WAY SYSTEM, 60 X 40 COVERAGE PATTERN WITH 2432H 38MM

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER 2-WAY SYSTEM, 60 X 40 COVERAGE PATTERN WITH 2432H 38MM

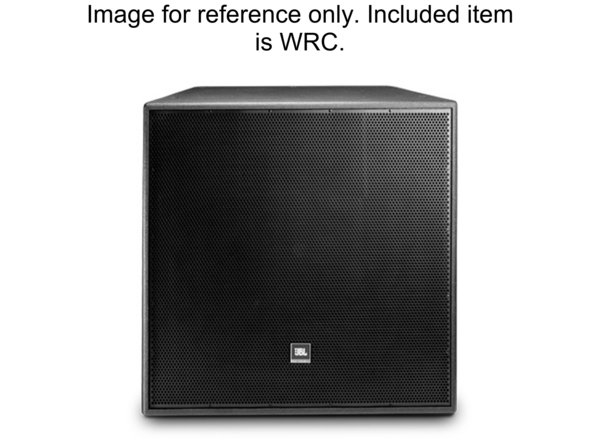

Click image to enlarge

PD564-WRC
15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER 2-WAY SYSTEM, 60 X 40 COVERAGE PATTERN WITH 2432H 38MM

  • UM : EA
  • Estimated Weight: 177.0

The PD564-WRC is a 15-inch horn-loaded full-range loudspeaker featuring a rotatable horn with a 60° by 40° coverage pattern. It operates effectively down to 80 Hz, making it suitable for music and speech applications requiring controlled directivity and high output levels. The design supports integration with subwoofers for extended low-frequency performance in full-range sound systems.

Features:

  • 380 mm (15”) horn-loaded low-frequency driver
  • PT Progressive Transition waveguides
  • Broadband 60° x 40° pattern control
  • Low distortion at high SPL levels
  • Smooth frequency response
  • Rotatable waveguide for horizontal or vertical orientation
  • Steep-slope passive crossover network
  • Switchable bi-amp/passive crossover modes
Frequency Range 50Hz to 20kHz
Frequency Response 90Hz to 17kHz
Coverage Pattern 60° x 40°
Directivity Factor (Q) 20
Directivity Index (DI) 13 dB
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 1.2 kHz
Transducer Power Ratings (AES) LF 450W (2hrs), 300W (100hrs); HF 75W (2hrs), 50W (100hrs)
System Power Rating Passive mode 500W (2hrs), 300W (100hrs) IEC
Maximum SPL (1m) Bi-amp LF 133 dB cont (139 dB peak), HF 132 dB cont (138 dB peak), Passive 132 dB cont (138 dB peak)
