PD564-WRX | 15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER 2-WAY SYSTEM, 60 X 40 COVERAGE PATTERN WITH 2432H 38MM

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER 2-WAY SYSTEM, 60 X 40 COVERAGE PATTERN WITH 2432H 38MM

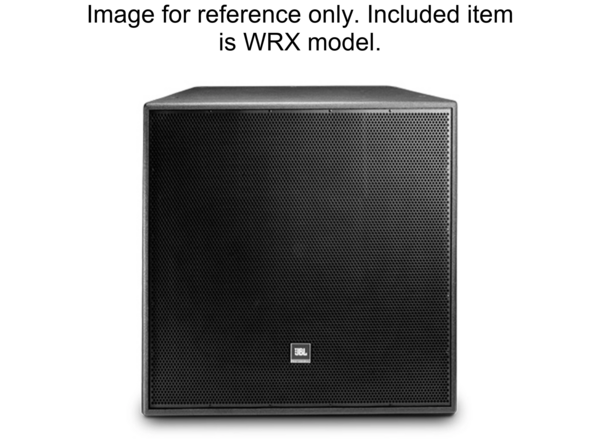

Click image to enlarge

PD564-WRX
15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER 2-WAY SYSTEM, 60 X 40 COVERAGE PATTERN WITH 2432H 38MM

  • UM : EA
  • Estimated Weight: 157.0

PD564-WRX is a 15-inch horn-loaded full-range loudspeaker featuring a rotatable horn with a 60° by 40° dispersion pattern. It is designed to provide controlled directivity and high output performance.

The loudspeaker operates effectively down to 80 Hz and can be used independently for music or speech applications or integrated with subwoofers to achieve extended low-frequency response in full-range sound reinforcement systems.

Features:

  • 380 mm (15”) horn-loaded low-frequency driver
  • Large PT Progressive Transition waveguides
  • Broadband 60° x 40° pattern control
  • Low distortion at high SPL levels
  • Smooth frequency response
  • Rotatable waveguide for horizontal or vertical orientation
  • Steep-slope passive crossover network
  • Switchable bi-amp/passive crossover modes
Frequency Range 50 Hz to 20 kHz
Frequency Response 90 Hz to 17 kHz
Coverage Pattern 60° x 40°
Directivity Factor (Q) 20
Directivity Index (DI) 13 dB
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 1.2 kHz
Transducer Power Ratings (AES) LF 450W (2 hrs), 300W (100 hrs); HF 75W (2 hrs), 50W (100 hrs)
System Power Rating (Passive mode) 500W (2 hrs), 300W (100 hrs)
Nominal Impedance 8ohms
