PD566 - WH | 15" HORN-LOADED 2-WAY FULL-RANGE SYSTEM, 60 X 60 COVERAGE PATTERN WITH 2432H 38MM (1.5 IN) EXIT,

  • MAP: $4,479.00 / EA
  • List Price: $4,479.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
15" HORN-LOADED 2-WAY FULL-RANGE SYSTEM, 60 X 60 COVERAGE PATTERN WITH 2432H 38MM (1.5 IN) EXIT,

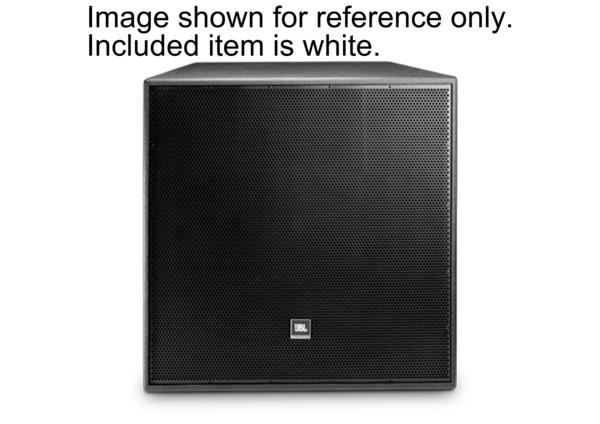

Click image to enlarge

PD566 - WH
15" HORN-LOADED 2-WAY FULL-RANGE SYSTEM, 60 X 60 COVERAGE PATTERN WITH 2432H 38MM (1.5 IN) EXIT,

  • UM : EA

The PD566-WH is a 15-inch horn-loaded full-range loudspeaker featuring a 60° x 60° horn for controlled directivity. It operates effectively down to 80 Hz, making it suitable for use in music or speech reinforcement systems. The design supports integration with subwoofers to achieve extended low-frequency bandwidth in full-range audio configurations.

Features:

  • 380 mm (15”) horn-loaded low-frequency driver
  • Large PT Progressive Transition waveguides with 60° x 60° pattern control
  • Low distortion at high SPL levels
  • Smooth frequency response
  • Rotatable waveguide for horizontal or vertical orientation
  • Steep-slope passive crossover with switchable bi-amp/passive modes
Frequency Range 70 Hz to 20 kHz
Frequency Response 90 Hz to 17 kHz
Coverage Pattern 60° x 60°
Directivity Factor (Q) 16
Directivity Index (DI) 12 dB
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 1.3 kHz
System Power Rating Passive Mode 500W (2hrs), 300W (100hrs) IEC
Maximum SPL Bi-amp LF/HF 133 dB cont (139 dB peak), Passive 131 dB cont (137 dB peak)
Nominal Impedance 8ohms
