PD566-WRC | 15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER2-WAY SYSTEM, 60° X 60° COVERAGE PATTERN WITH 2432H

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER2-WAY SYSTEM, 60° X 60° COVERAGE PATTERN WITH 2432H

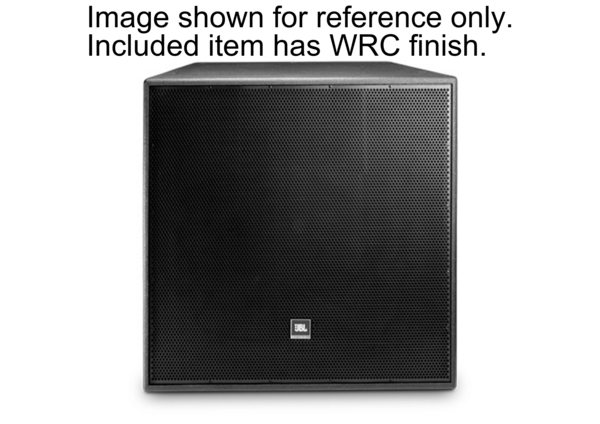

Click image to enlarge

PD566-WRC
15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER2-WAY SYSTEM, 60° X 60° COVERAGE PATTERN WITH 2432H

  • UM : EA
  • Estimated Weight: 172.0

The PD566-WRC is a full-range loudspeaker featuring a 15-inch driver and a 60° x 60° horn for controlled directivity. It operates down to 80 Hz, making it suitable for music and speech applications. The design incorporates Precision Directivity technology to maintain consistent pattern control at high output levels.

Features:

  • 380 mm (15”) horn-loaded low-frequency driver
  • Large PT Progressive Transition waveguides for 60° x 60° pattern control
  • Low distortion at high SPL levels
  • Smooth frequency response
  • Rotatable waveguide for horizontal or vertical cabinet orientation
  • Steep-slope passive crossover with switchable bi-amp/passive modes
Frequency Range 70 Hz to 20 kHz
Frequency Response 90 Hz to 17 kHz
Coverage Pattern 60° x 60°
Directivity Factor (Q) 16
Directivity Index (DI) 12 dB
Crossover Modes Bi-amp/passive switchable
Passive Crossover Frequency 1.3 kHz
System Power Rating (Passive mode) 500W (2 hrs), 300W (100 hrs)
Maximum SPL (1m) Bi-amp LF/HF 133 dB cont (139 dB peak), Passive 131 dB cont (137 dB peak)
Nominal Impedance 8ohms
