PD566-WRX | 15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER2-WAY SYSTEM, 60° X 60° COVERAGE PATTERN WITH 2432H

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER2-WAY SYSTEM, 60° X 60° COVERAGE PATTERN WITH 2432H

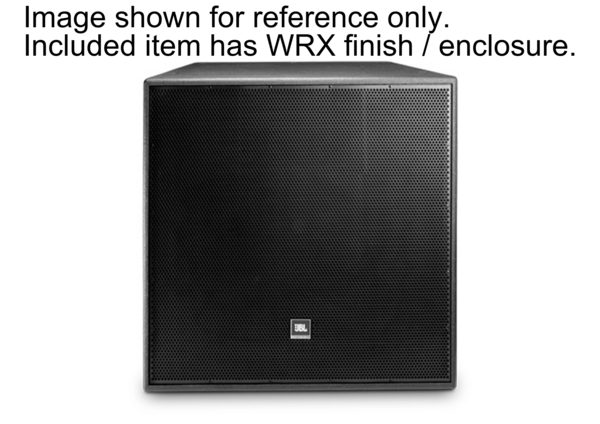

Click image to enlarge

PD566-WRX
15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER2-WAY SYSTEM, 60° X 60° COVERAGE PATTERN WITH 2432H

  • UM : EA
  • Estimated Weight: 157.0

The PD566-WRX is a 15-inch horn-loaded full-range loudspeaker featuring a 60° x 60° horn configuration. It is designed to provide controlled directivity and high output levels, making it suitable for both music and speech reinforcement applications. The frequency response extends down to 80 Hz, enabling use as a standalone unit or in combination with subwoofers for full-range audio systems.

Features:

  • 380 mm (15”) horn-loaded low-frequency driver
  • PT Progressive Transition waveguides with 60° x 60° pattern control
  • Low distortion at high SPL levels
  • Smooth frequency response
  • Rotatable waveguide for horizontal or vertical orientation
  • Steep-slope passive crossover network
  • Switchable bi-amp/passive crossover modes
Frequency Range 70 Hz to 20 kHz
Frequency Response 90 Hz to 17 kHz
Coverage Pattern 60° x 60°
Directivity Factor (Q) 16
Directivity Index (DI) 12 dB
Crossover Modes Bi-amp/passive switchable
Passive Crossover Frequency 1.3 kHz
System Power Rating (Passive) 500W 2hrs, 300W 100hrs (IEC)
Maximum SPL (1m) Bi-amp LF: 133 cont (139 peak), HF: 133 cont (139 peak), Passive: 131 cont (137 peak)
Nominal Impedance 8ohms
