PD595 | 15" HORN-LOADED 2-WAY FULL-RANGE SYSTEM, ROTATABLE 90°X 50° COVERAGE PATTERN WITH 2432H 38MM(1.5 IN)

  • MAP: $4,550.00 / EA
  • List Price: $4,550.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
15" HORN-LOADED 2-WAY FULL-RANGE SYSTEM, ROTATABLE 90°X 50° COVERAGE PATTERN WITH 2432H 38MM(1.5 IN)
15" HORN-LOADED 2-WAY FULL-RANGE SYSTEM, ROTATABLE 90°X 50° COVERAGE PATTERN WITH 2432H 38MM(1.5 IN)
Click image to enlarge
15" HORN-LOADED 2-WAY FULL-RANGE SYSTEM, ROTATABLE 90°X 50° COVERAGE PATTERN WITH 2432H 38MM(1.5 IN)
15" HORN-LOADED 2-WAY FULL-RANGE SYSTEM, ROTATABLE 90°X 50° COVERAGE PATTERN WITH 2432H 38MM(1.5 IN)

PD595
15" HORN-LOADED 2-WAY FULL-RANGE SYSTEM, ROTATABLE 90°X 50° COVERAGE PATTERN WITH 2432H 38MM(1.5 IN)

  • UM : EA

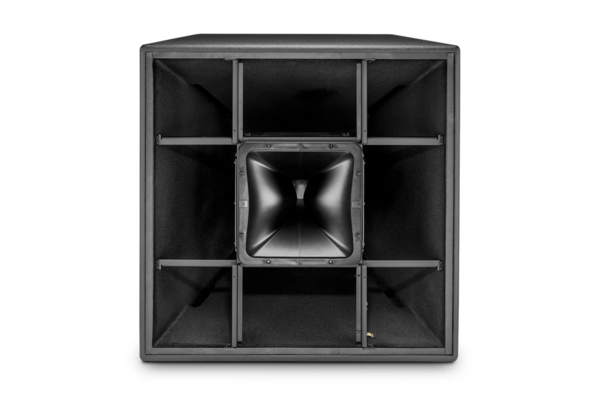

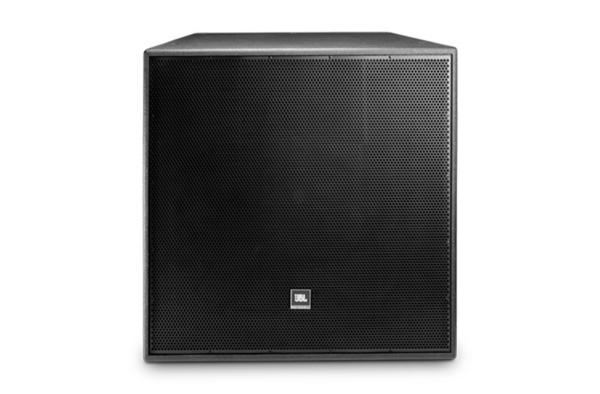

PD595 is a 15-inch horn-loaded full-range loudspeaker featuring a rotatable horn with a 90° by 50° coverage pattern. It is designed for applications that require controlled directivity and high output levels.

The loudspeaker provides frequency response down to 80 Hz and can be used independently for music or speech reinforcement. For extended low-frequency performance, it can be combined with subwoofers to form full-range systems.

Features:

  • 380 mm (15”) horn-loaded low-frequency driver
  • Large PT Progressive Transition waveguides with 90° x 50° pattern control
  • Low distortion at high SPL levels
  • Smooth frequency response
  • Rotatable waveguide for horizontal or vertical orientation
  • Steep-slope passive crossover network
  • Switchable bi-amp/passive crossover mode
Frequency Range 50Hz to 20kHz
Frequency Response 90Hz to 16kHz
Coverage Pattern 90° x 50°
Directivity Factor (Q) 10
Directivity Index (DI) 10 dB
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 1.3 kHz
System Power Rating Passive mode 500W (IEC)
Maximum SPL (1m) Bi-amp LF 133 dB cont (139 peak), HF 131 dB cont (137 peak), Passive 131 dB cont (137 peak)
System Sensitivity (1W @ 1m) 104 dB SPL
