PD595-WRX | 15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER 2-WAY SYSTEM, 90° X 50° COVERAGE PATTERN WITH 2432H

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER 2-WAY SYSTEM, 90° X 50° COVERAGE PATTERN WITH 2432H
Click image to enlarge

PD595-WRX
15" HORN-LOADED 2-WAY FULL-RANGE LOUDSPEAKER 2-WAY SYSTEM, 90° X 50° COVERAGE PATTERN WITH 2432H

  • UM : EA
  • Estimated Weight: 297.0

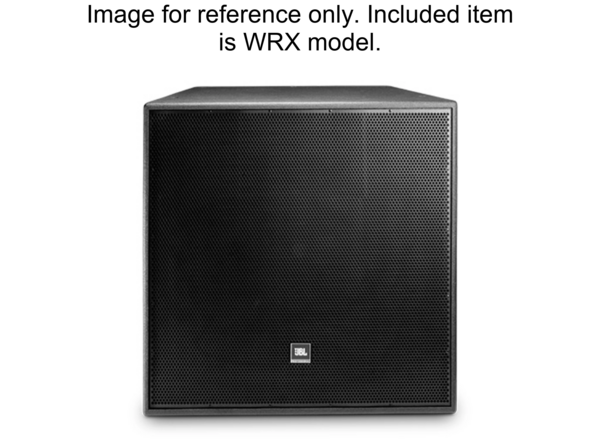

The PD595-WRX is a 15-inch horn-loaded full-range loudspeaker featuring a 90° x 50° rotatable horn for adjustable directivity. It is designed for applications requiring high output and precise pattern control.

This loudspeaker delivers frequency response extending down to 80 Hz, suitable for music or speech systems. It can also be paired with subwoofers to achieve extended low-frequency bandwidth in full-range audio configurations.

Features:

  • 380 mm (15”) horn-loaded low-frequency driver
  • Large PT Progressive Transition waveguides
  • 90° x 50° pattern control
  • Low distortion at high SPL levels
  • Smooth frequency response
  • Rotatable waveguide for horizontal or vertical orientation
  • Steep-slope passive crossover network
  • Switchable bi-amp/passive crossover mode
Frequency Range 50Hz to 20kHz
Frequency Response 90Hz to 16kHz
Coverage Pattern 90° x 50°
Directivity Factor 10
Directivity Index 10 dB
Crossover Modes Bi-amp/Passive switchable
Passive Crossover Frequency 1.3 kHz
Transducer Power Ratings LF 450W (2 hrs), 300W (100 hrs); HF 75W (2 hrs), 50W (100 hrs)
System Power Rating Passive 500W (2 hrs), 300W (100 hrs) IEC
Maximum SPL (1m) Bi-amp LF 133 dB cont (139 dB peak), HF 131 dB cont (137 dB peak); Passive 131 dB cont (137 dB peak)
