PD6200/43-WH | HIGH OUTPUT TWO-WAY MID/HIGH FREQUENCY LOUDSPEAKER WITH 8" MF AND 40° X 30° COVERAGE PATTERN.

  • MAP: $6,500.00 / EA
  • List Price: $6,500.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT TWO-WAY MID/HIGH FREQUENCY LOUDSPEAKER WITH 8" MF AND 40° X 30° COVERAGE PATTERN.
Click image to enlarge

PD6200/43-WH
HIGH OUTPUT TWO-WAY MID/HIGH FREQUENCY LOUDSPEAKER WITH 8" MF AND 40° X 30° COVERAGE PATTERN.

  • UM : EA

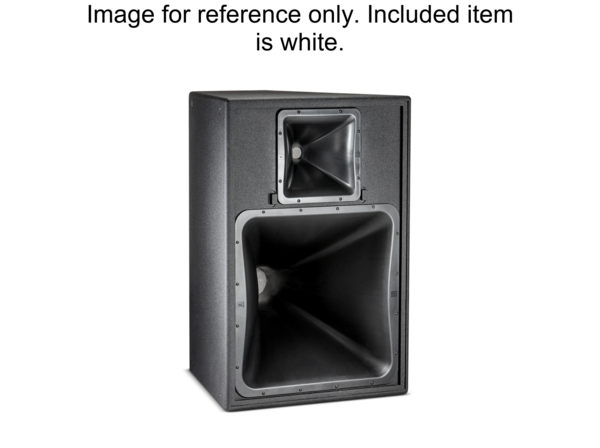

The PD6200/43-WH is an 8-inch, 2-way horn-loaded loudspeaker featuring a 40° x 30° fixed coverage horn. It is engineered for mid- to high-frequency audio reproduction with a focus on precise directivity and controlled dispersion patterns. The speaker design supports high output levels suitable for professional sound reinforcement applications.

Features:

  • 200 mm dual-coil CMCD Cone Midrange Compression Driver
  • High sensitivity and continuous SPL capability
  • Low distortion and extended bandwidth
  • Large format neodymium HF driver
  • Clear high frequency projection
  • PT Progressive Transition waveguides for pattern control and smooth frequency response
  • Rotatable waveguides for horizontal or vertical orientation
Frequency Range 200 Hz to 18 kHz
Frequency Response 240 Hz to 16 kHz
Coverage Pattern 40° x 30° / 60° x 40° / 60° x 60° / 90° x 50°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order Linkwitz-Riley HP & LP, 1.7 kHz
Transducer Power Rating (AES) MF 350 W, HF 75 W
System Power Rating Passive Mode 300 W (IEC rated)
Maximum SPL (1m) Bi-amp MF 137 dB, HF 135 dB; Passive 136 dB
System Sensitivity (1w @ 1m) Passive Mode 111 dB SPL
Nominal Impedance 8ohms
