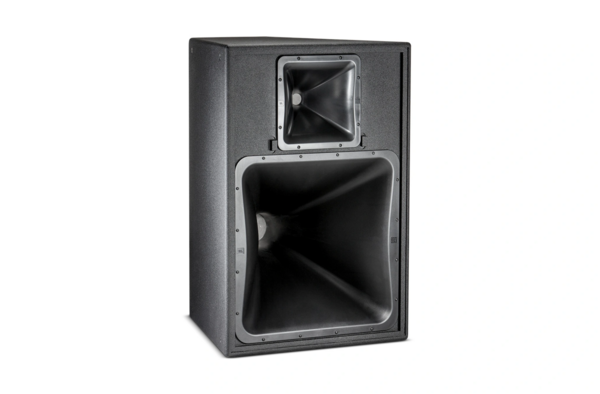

PD6200/64 | HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 40° COVERAGE PATTERN.

  • MAP: $4,600.00 / EA
  • List Price: $4,600.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 40° COVERAGE PATTERN.
Click image to enlarge

PD6200/64
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 40° COVERAGE PATTERN.

  • UM : EA

The PD6200/64 is an 8-inch, 2-way horn-loaded speaker featuring a 60° horizontal by 40° vertical horn dispersion pattern. It is part of the PD6200 Series, designed for mid-high frequency sound reproduction. The speaker is engineered to provide controlled directivity and high output levels suitable for precise sound coverage applications.

Features:

  • 200 mm dual-coil CMCD Cone Midrange Compression Driver with high sensitivity, high SPL, low distortion, extended bandwidth, and improved phase coherence
  • Large format neodymium HF driver for clear high frequency projection
  • PT Progressive Transition waveguides for excellent pattern control, low distortion, and smooth frequency response
  • Rotatable waveguides for horizontal or vertical cabinet orientation
Frequency Range 200 Hz to 18 kHz
Frequency Response 240 Hz to 16 kHz
Coverage Pattern options 40° x 30°, 60° x 40°, 60° x 60°, 90° x 50°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order (36 dB/oct) Linkwitz-Riley HP & LP at 1.7 kHz
Transducer Power Rating (AES) MF 350W, HF 75W
System Power Rating (Passive Mode) 300W (IEC rated)
Maximum SPL (1m) 135 dB continuous, 141 dB peak
System Sensitivity (1W @ 1m) 110 dB SPL
Nominal Impedance 8ohms
