PD6200/64-WRC | HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 40° COVERAGE PATTERN. 200 MM

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 40° COVERAGE PATTERN. 200 MM
Click image to enlarge

PD6200/64-WRC
HIGH OUTPUT TWO-WAY MID/HIGH FREQ LOUDSPEAKER WITH 8" MF AND 60° X 40° COVERAGE PATTERN. 200 MM

  • UM : EA
  • Estimated Weight: 156.5

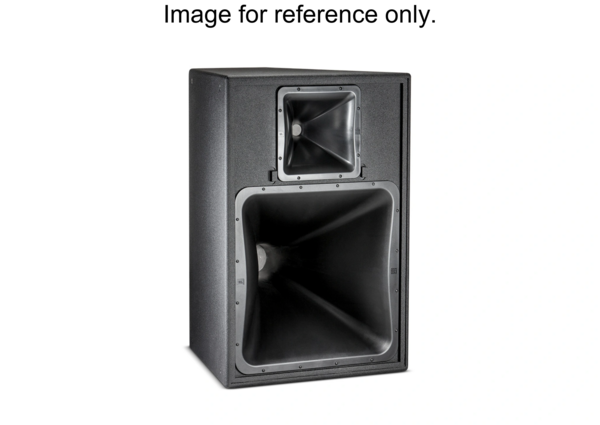

The PD6200/64-WRC is an 8-inch, 2-way horn-loaded loudspeaker featuring a 60° horizontal by 40° vertical coverage horn. It is engineered for mid to high-frequency sound reproduction, providing controlled directivity. The enclosure and driver configuration deliver precise pattern control suitable for high output applications.

Features:

  • 200 mm dual-coil CMCD cone midrange driver with high sensitivity and low distortion
  • Large format neodymium high-frequency driver for clear projection
  • PT Progressive Transition waveguides for excellent pattern control and smooth frequency response
  • Rotatable waveguides for horizontal or vertical cabinet orientation
Frequency Range 200 Hz to 18 kHz
Frequency Response 240 Hz to 16 kHz
Coverage Pattern 40° x 30° / 60° x 40° / 60° x 60° / 90° x 50°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order Linkwitz-Riley HP & LP, 1.7 kHz
Transducer Power Rating (AES) MF 350 W (1400 W peak), HF 75 W (300 W peak)
System Power Rating (Passive Mode) 300 W (1200 W peak)
Maximum SPL (1m) 135 dB-SPL continuous average, 141 dB peak
System Sensitivity (1W @ 1m) 110 dB SPL
Nominal Impedance 8ohms
