PD6200/64-WRX | HIGH OUTPUT TWO-WAY MID/HIGH FREQUENCY LOUDSPEAKER WITH 8" MF AND 60° X 40° COVERAGE PATTERN.

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT TWO-WAY MID/HIGH FREQUENCY LOUDSPEAKER WITH 8" MF AND 60° X 40° COVERAGE PATTERN.
Click image to enlarge

PD6200/64-WRX
HIGH OUTPUT TWO-WAY MID/HIGH FREQUENCY LOUDSPEAKER WITH 8" MF AND 60° X 40° COVERAGE PATTERN.

  • UM : EA

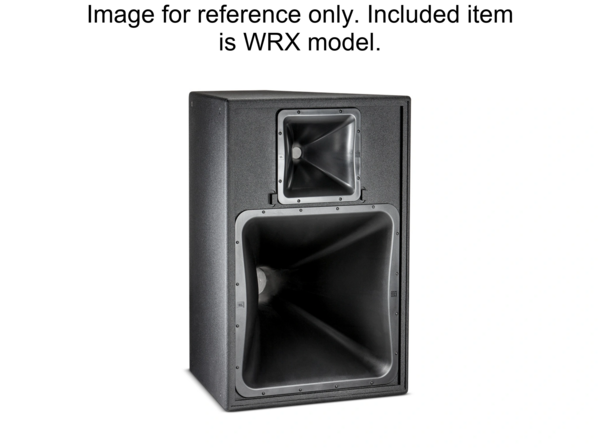

The PD6200/64-WRX is an 8-inch, 2-way horn-loaded loudspeaker featuring a 60° horizontal by 40° vertical horn coverage pattern. It is engineered to deliver mid-high frequency sound with precise directional control.

This loudspeaker is part of the PD6200 Series, optimized for applications requiring high output and defined pattern control to manage sound dispersion effectively.

Features:

  • 200 mm dual-coil CMCD cone midrange compression driver
  • Large format neodymium high-frequency driver
  • PT Progressive Transition waveguides for pattern control and low distortion
  • Rotatable waveguides for horizontal or vertical orientation
Frequency Range (-10dB) 200 Hz to 18 kHz
Frequency Response (±3 dB) 240 Hz to 16 kHz
Coverage Pattern 40° x 30° / 60° x 40° / 60° x 60° / 90° x 50°
Crossover Modes Bi-amp / Passive switchable
Passive Crossover 6th order Linkwitz-Riley HP & LP, 1.7 kHz
Transducer Power Rating (AES) MF: 350 W (1400 W peak), HF: 75 W (300 W peak)
System Power Rating Passive Mode: 300 W (1200 W peak)
Maximum SPL (1m) 135 dB-SPL continuous average (141 dB peak)
System Sensitivity (1w @ 1m) Passive Mode: 110 dB SPL
Nominal Impedance 8ohms
